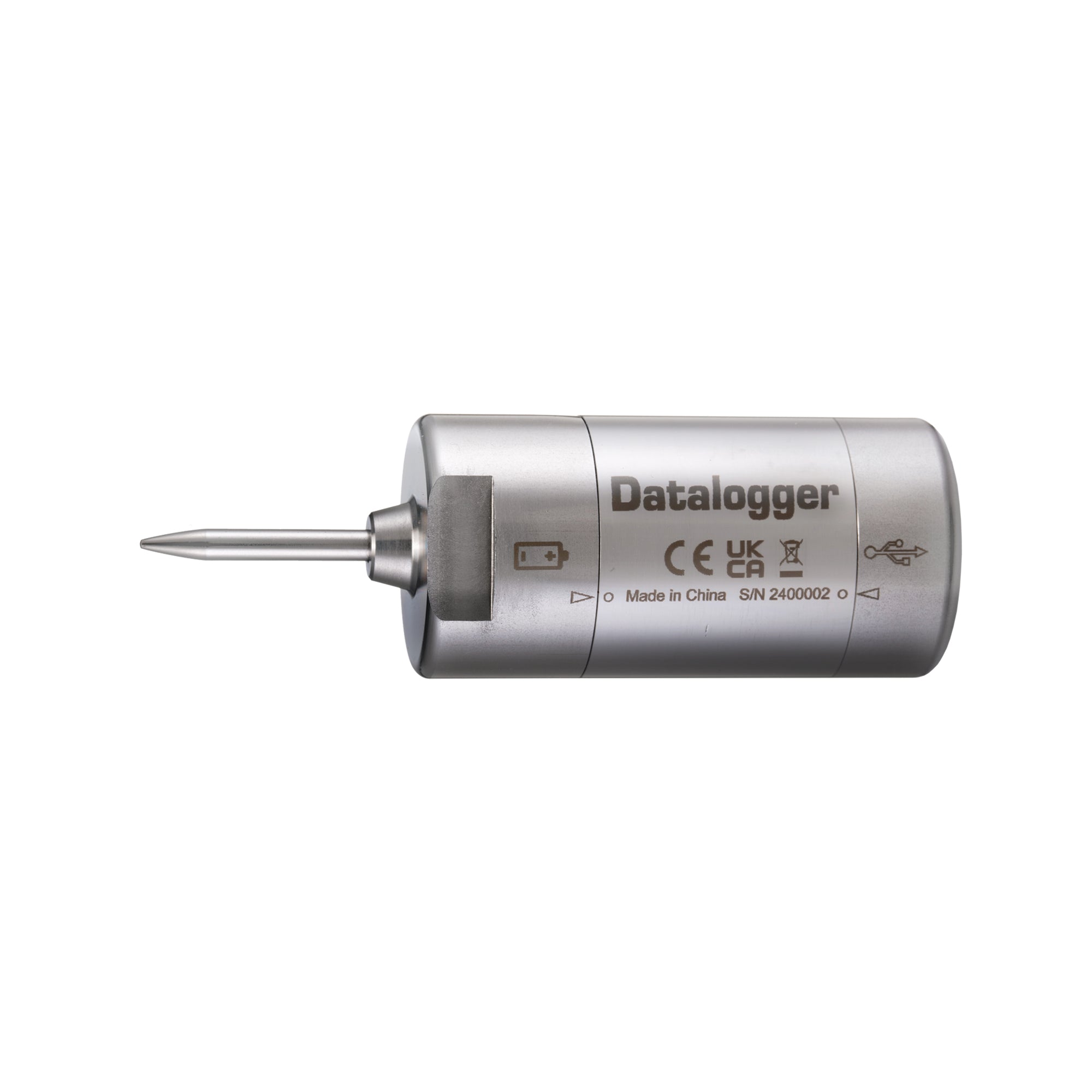

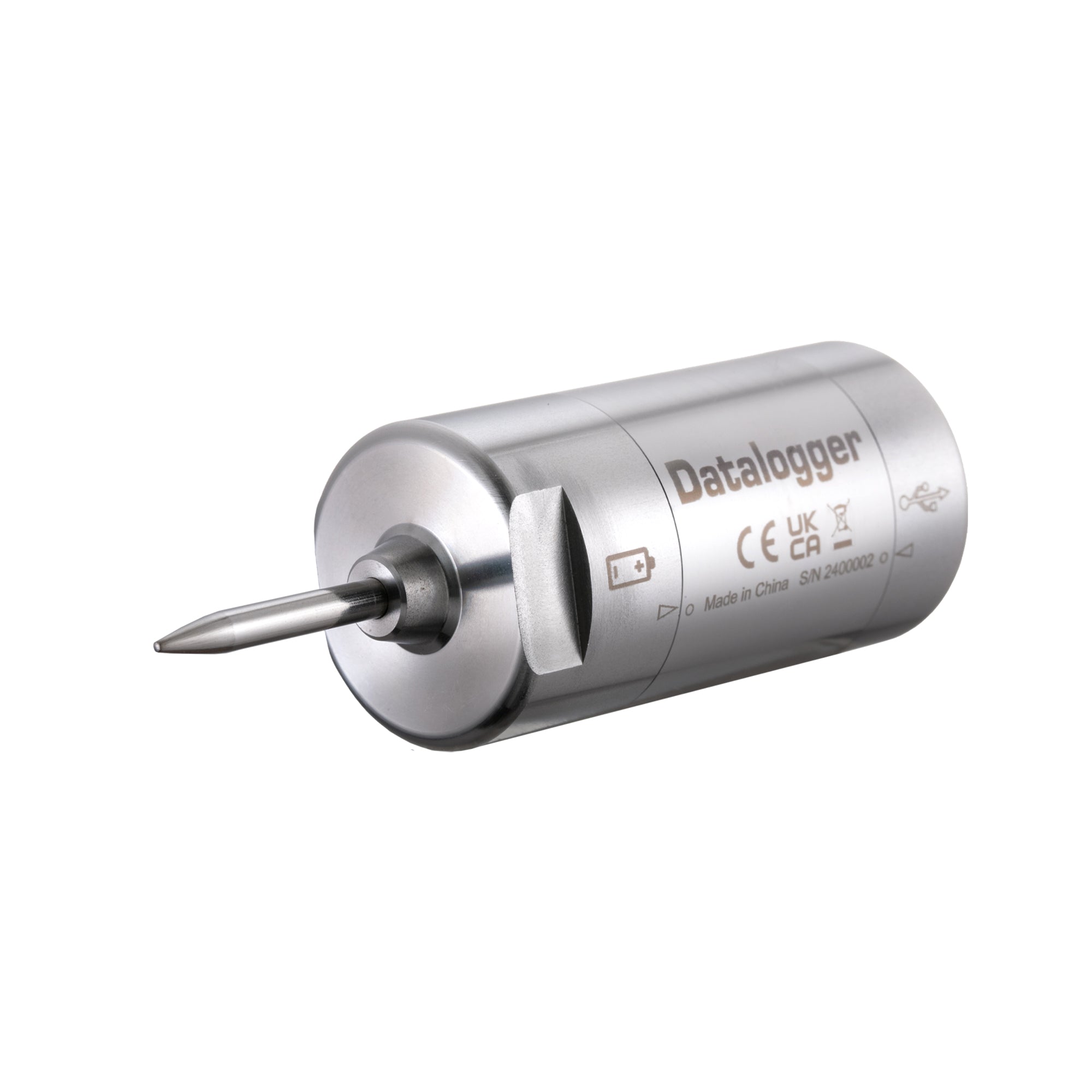

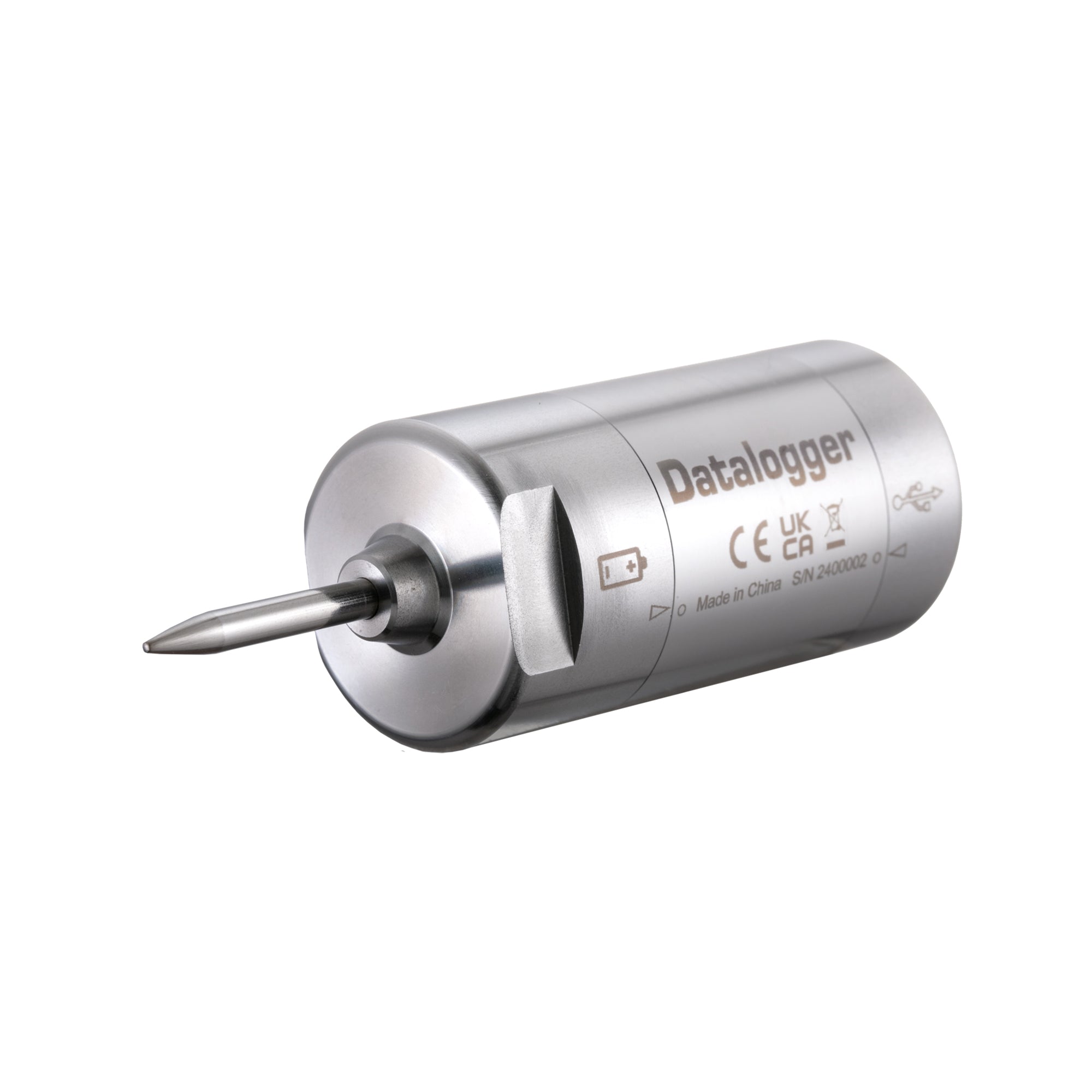

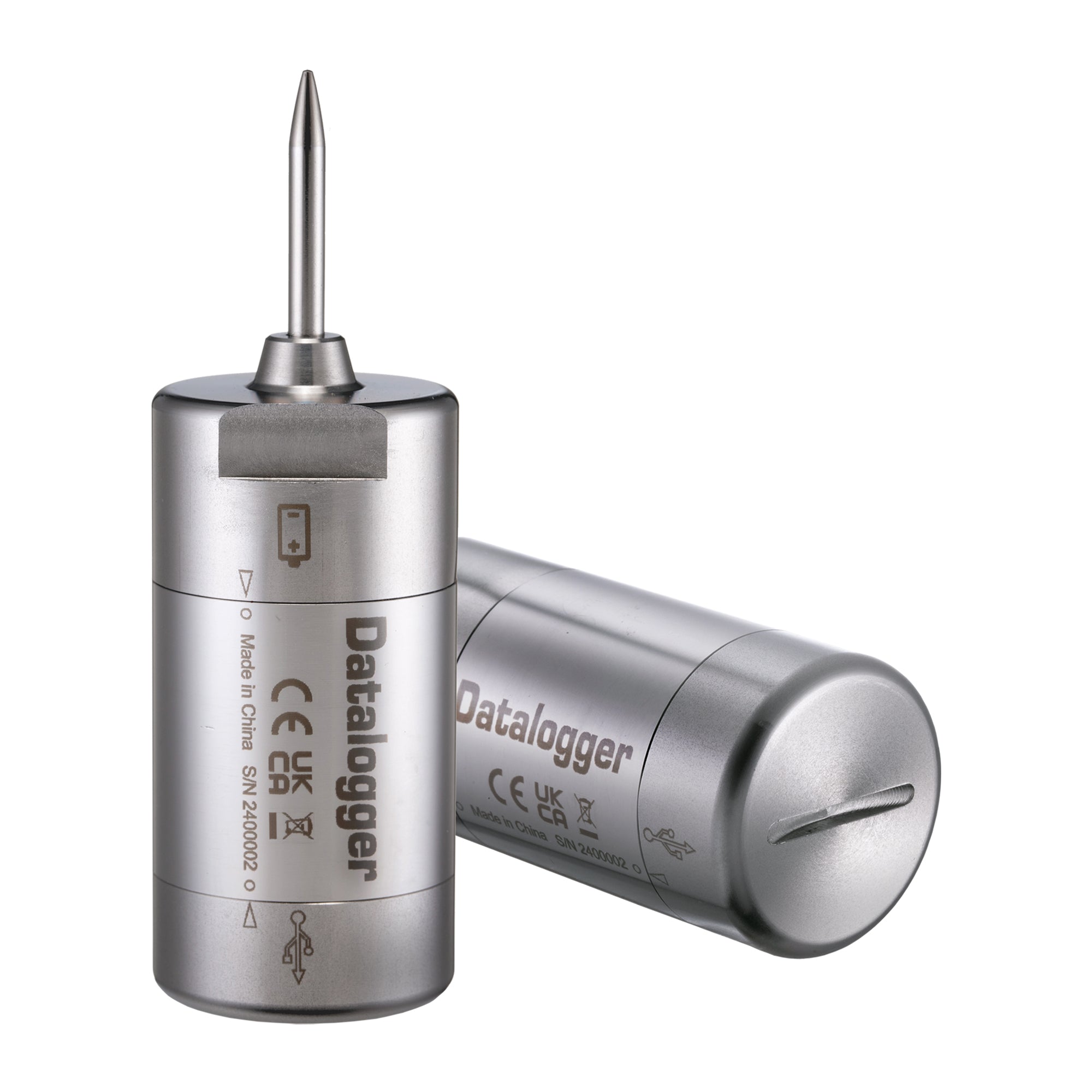

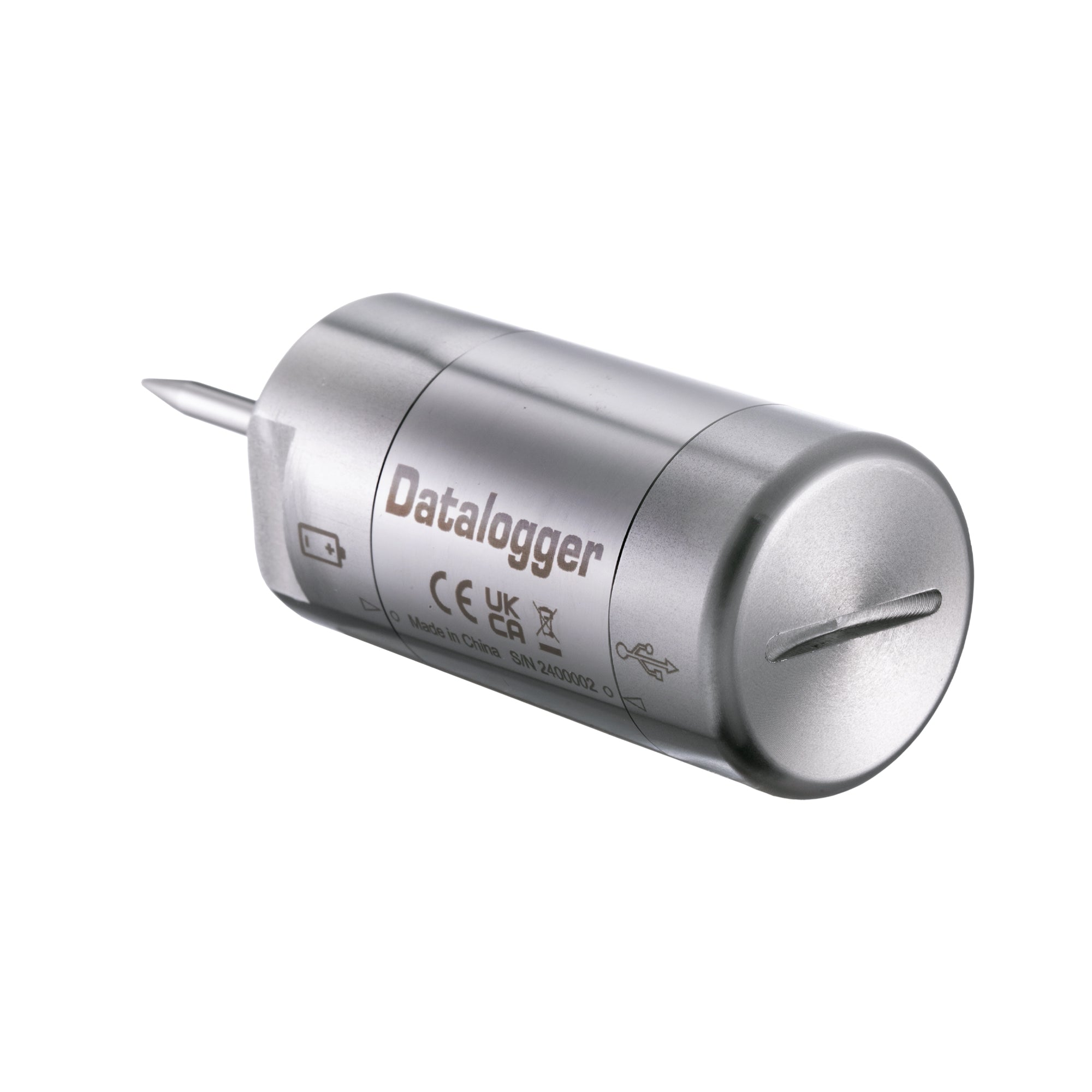

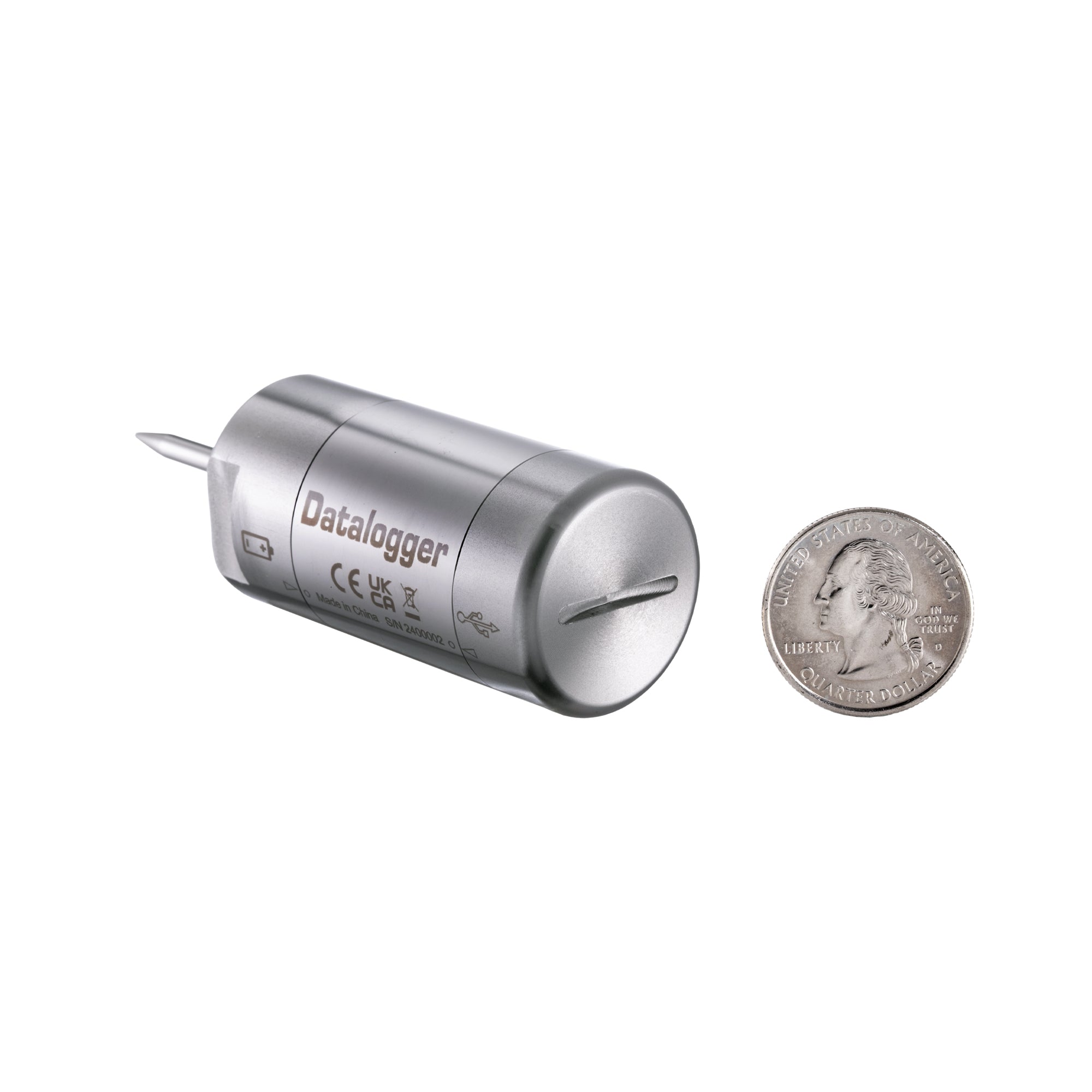

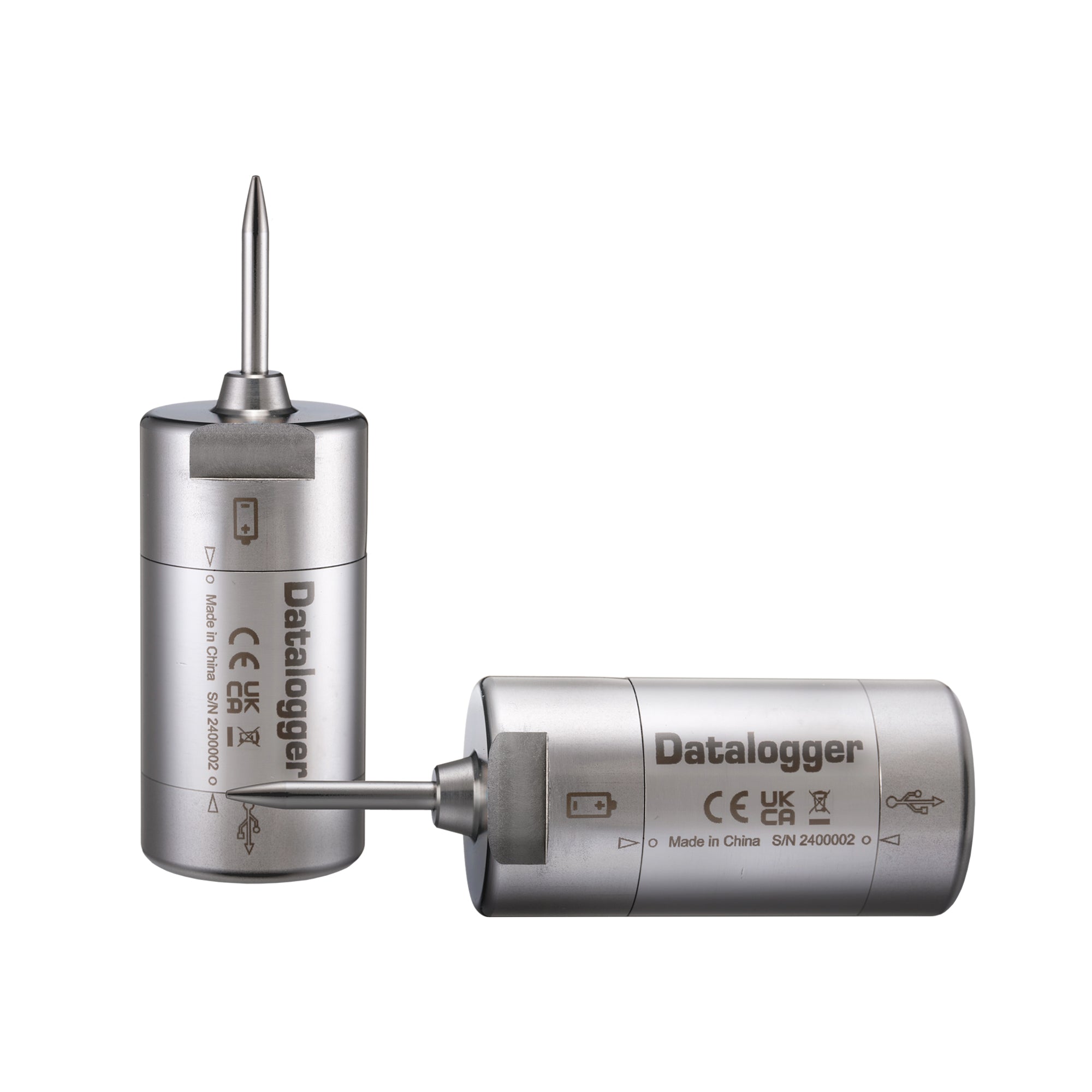

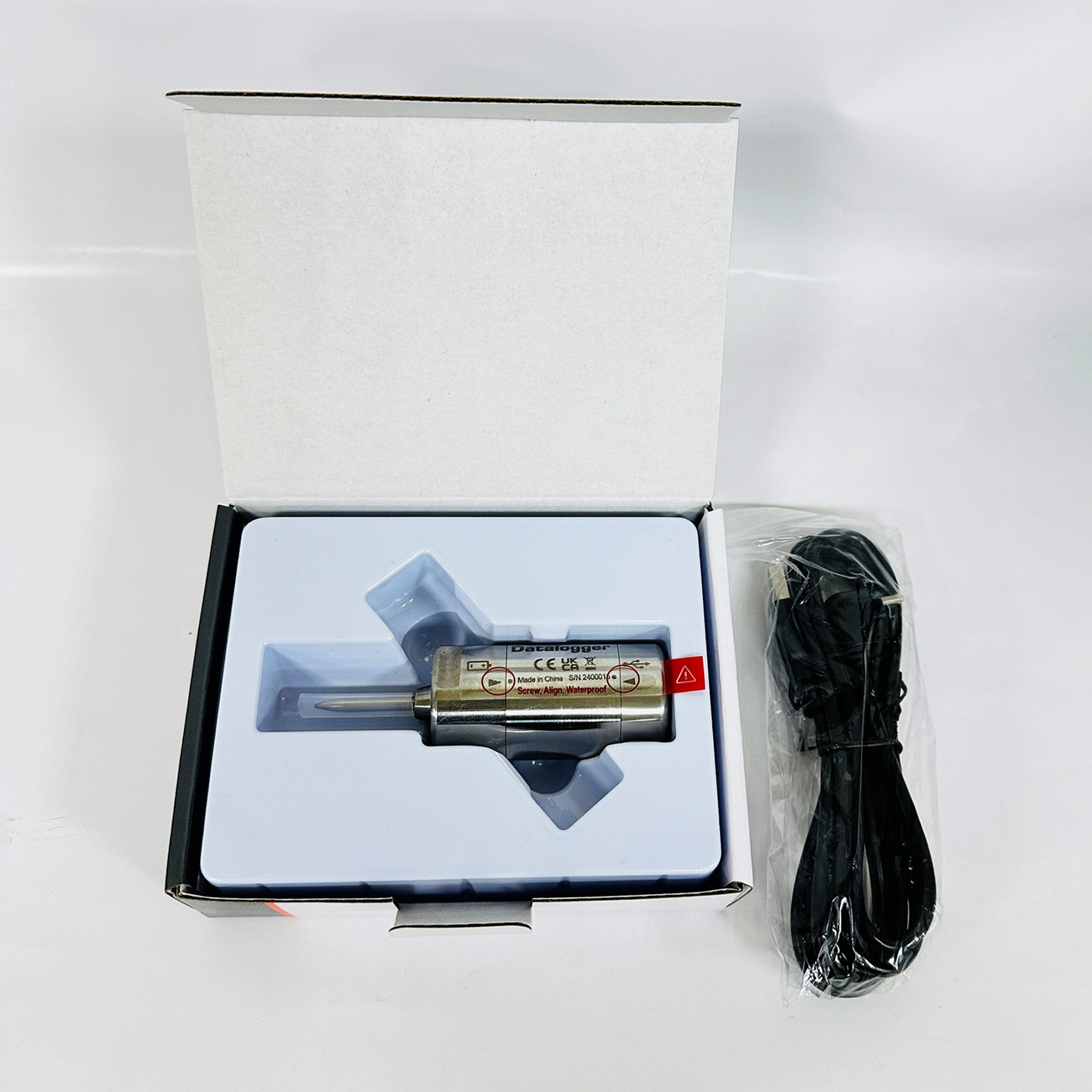

88170 AZ High Temperature Stainless Data Logger
Item Code: VZ88170AZ
The AZ 88170 High-Temperature Stainless Data Logger is suitable for industrial settings to monitor processes with high temperatures under high pressure, ensuring they remain within safe and optimal ranges.
Features
AZ 88170 High Temperature Stainless Data Logging Device features:

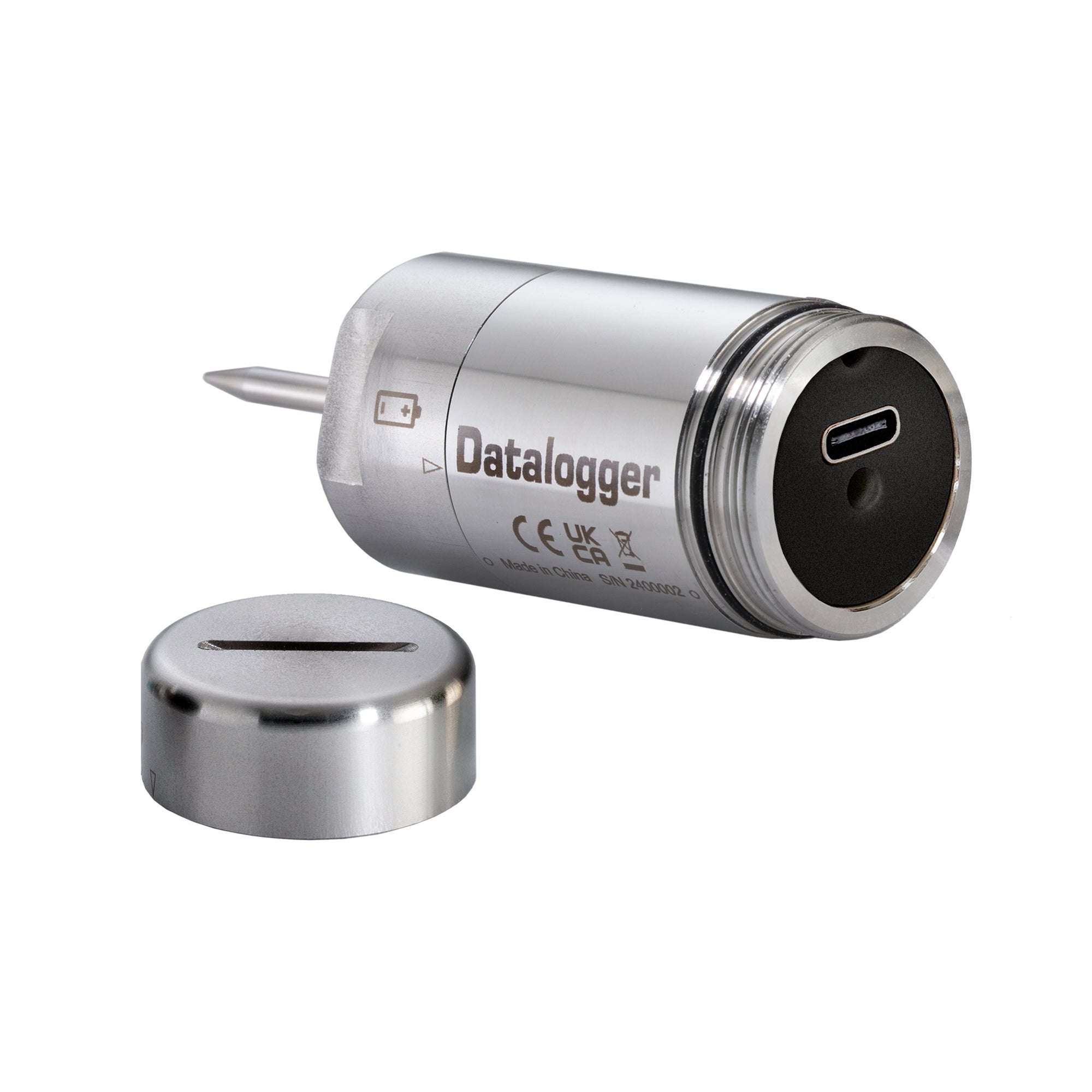

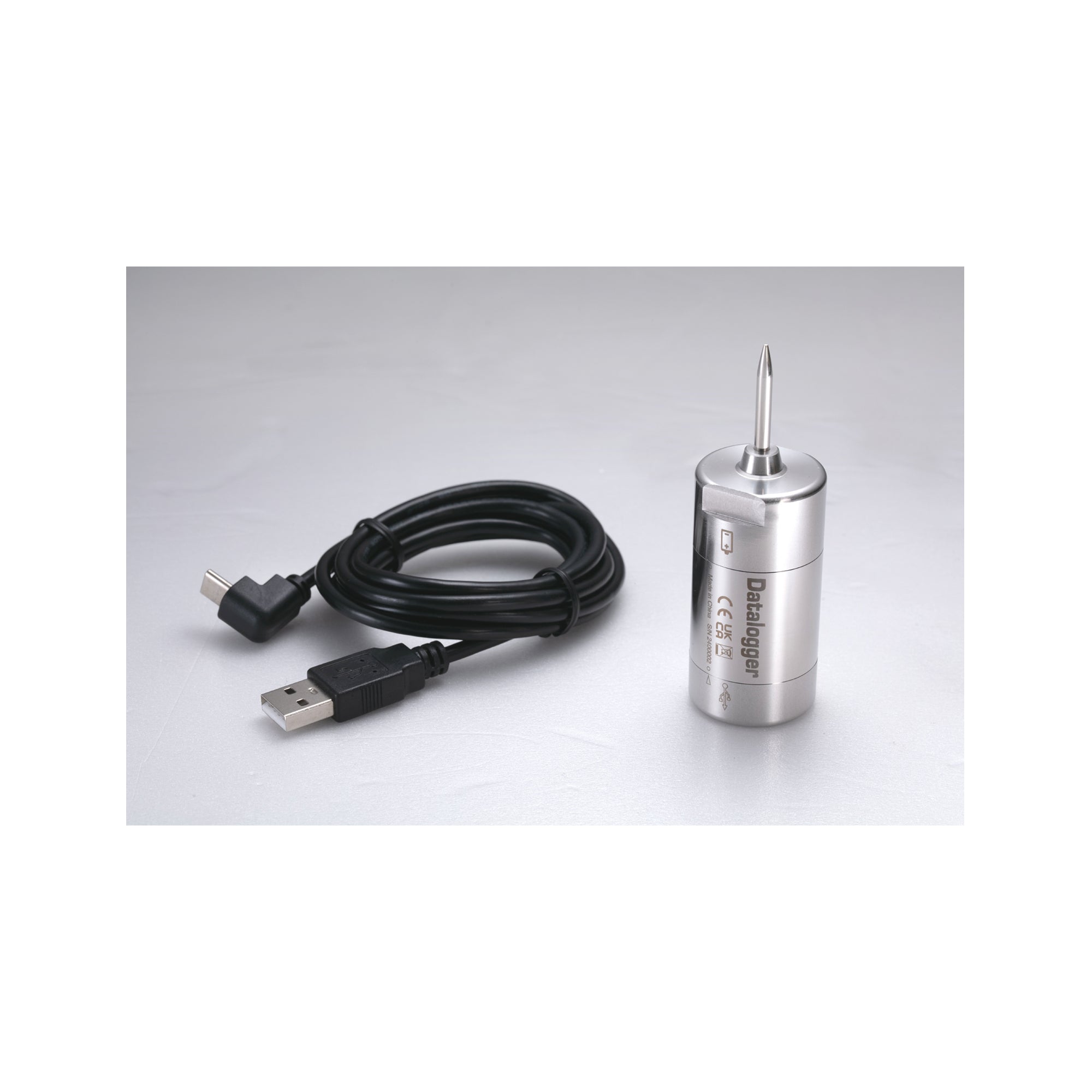

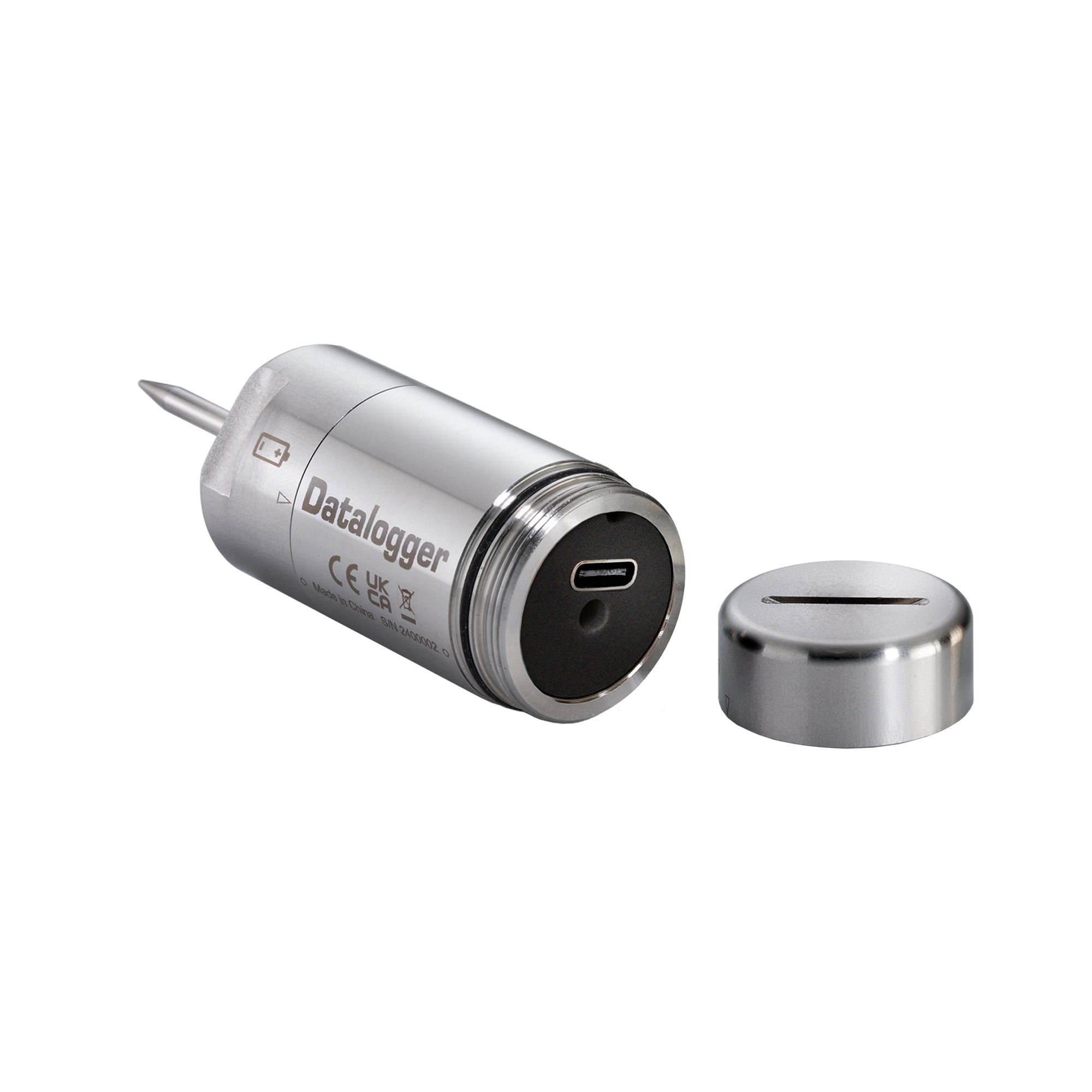

* Plug & Play. PC software and driver are not required
* Built-in PT1000 A-grade probe for high temp. measuring
* Automatically generate PDF/Excel report
* Report contains summary, graph, and detailed data
* Completely user re-programmable: 6 languages, sampling interval, start delay, unit, effective range, password and company name

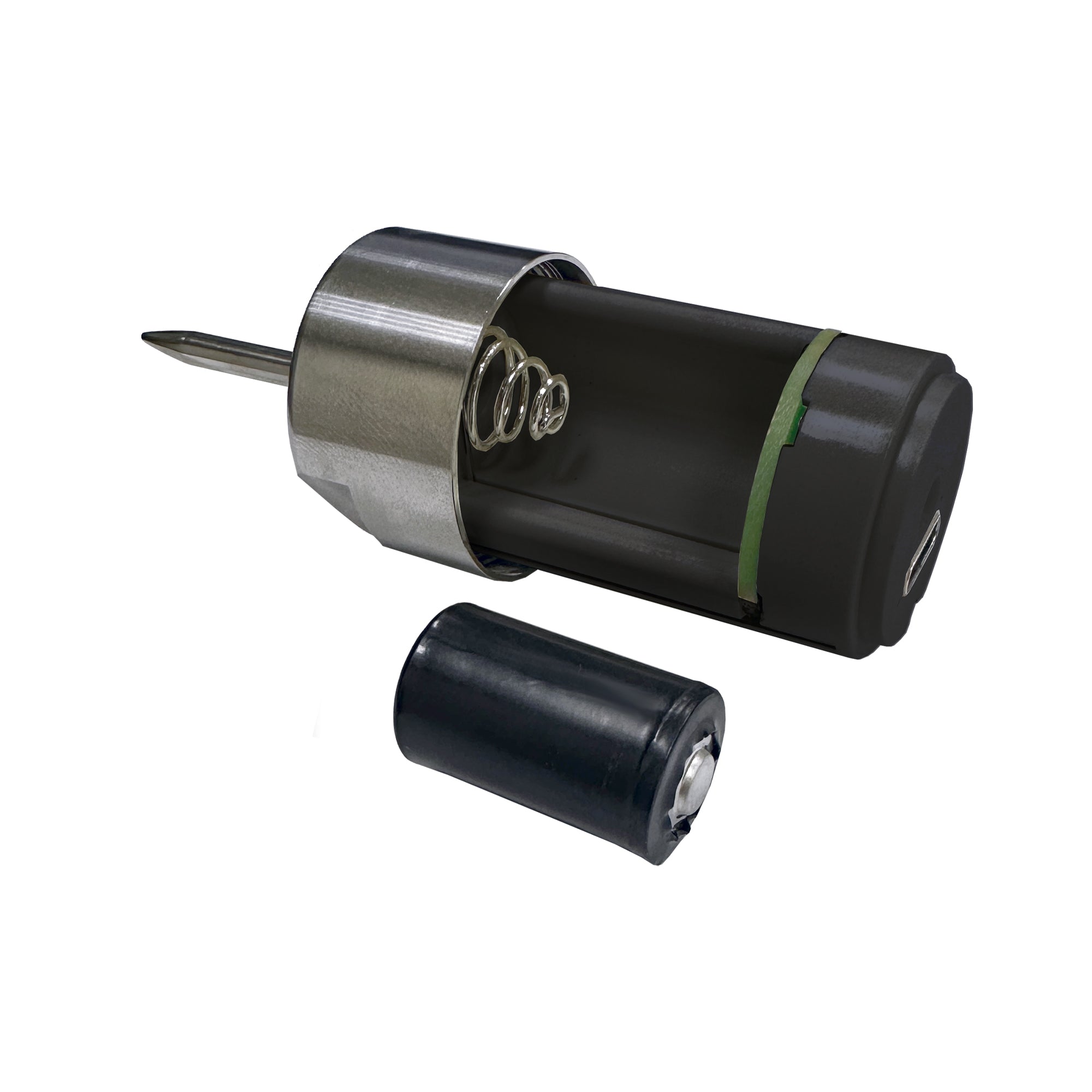

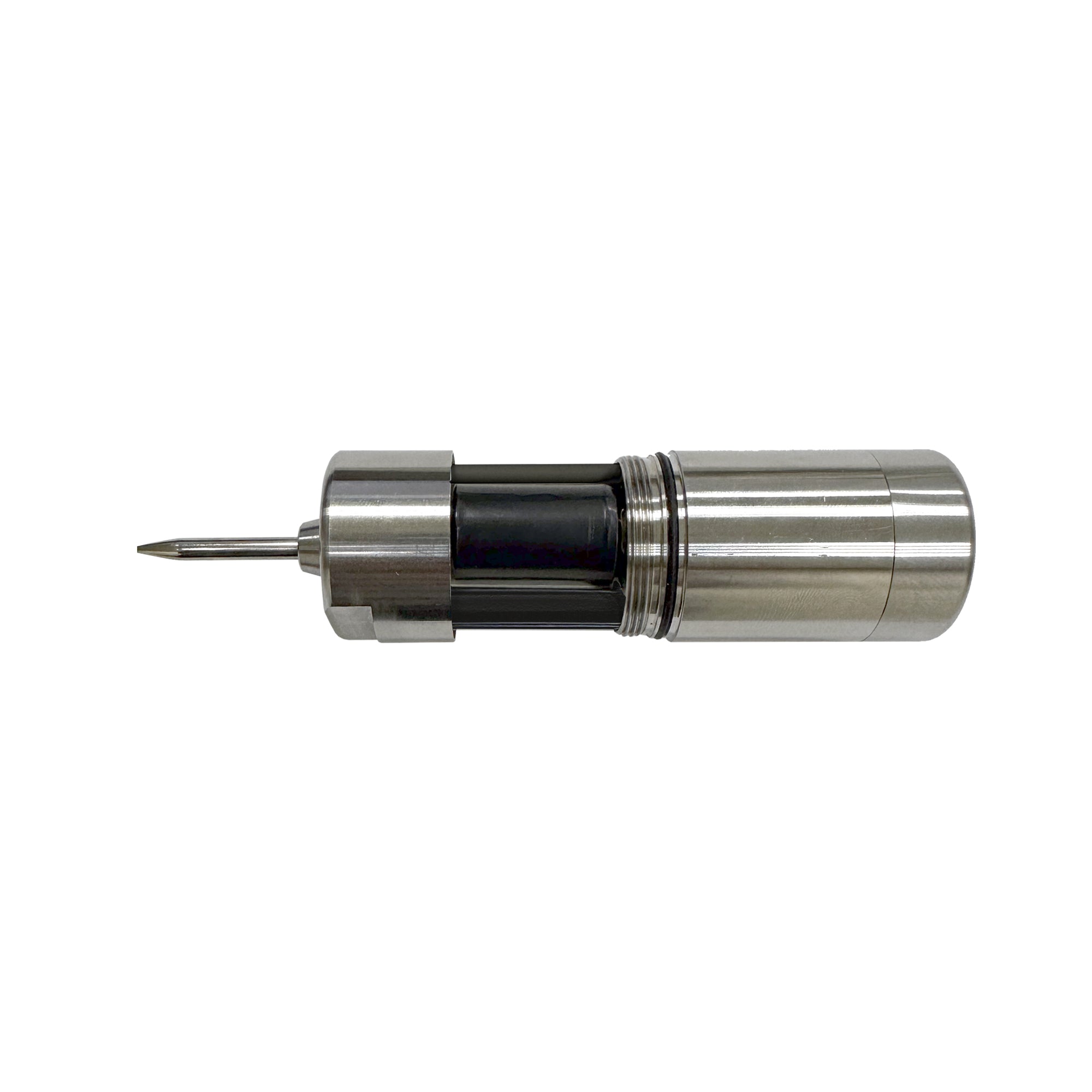

* Multiple time use. 3.6V replaceable lithium battery
Application
The AZ 88170 High-Temperature Data Logger is designed with an IP 68 stainless mechanism, it is ideal for testing the performance and safety of equipment under extreme conditions, particularly for autoclave validation.
The AZ 88170 Data Logger can provide affordable and accurate temperature records for steam autoclaving validation of food and medical materials. The plug-and-play feature of the AZ 88170 Data Logger, along with its ability to automatically generate reports and be reprogrammed for different languages and units, makes it a highly versatile and user-friendly device. Its replaceable battery ensures multiple uses, offering long-term value to businesses.
The AZ 88170 High-Temperature Stainless Data Logger is an excellent tool for tracking temperature in the pharmaceutical, chemical, food, and beverage industries.
The AZ 88170 High-Temperature Stainless Data Logger was designed and manufactured by AZ Instrument, a well-experienced manufacturer of Thermometer Data Logger Company.
TECHNICAL SPECIFICATION
Temperature Range | PT1000 RTD sensor, -40.0~140.0℃ , -40.0~284.0℉ |
Temperature Resolution | 0.1℃, 0.1℉ |
Temperature Accuracy | ±0.4℃ for full range |
IP | IP68 (10 meters water deep @30mins) |
Housing/Probe materials | Stainless steel SUS304 |
Logging Type | Multiple time use till battery power is low |
Meter Size | 64 (L) * 31.2 (Dia)mm |
Probe Size | 25.8 (L) * 3.5 (Dia)mm |
T90 Response time | <20 seconds (room Temp. to 90℃) |
