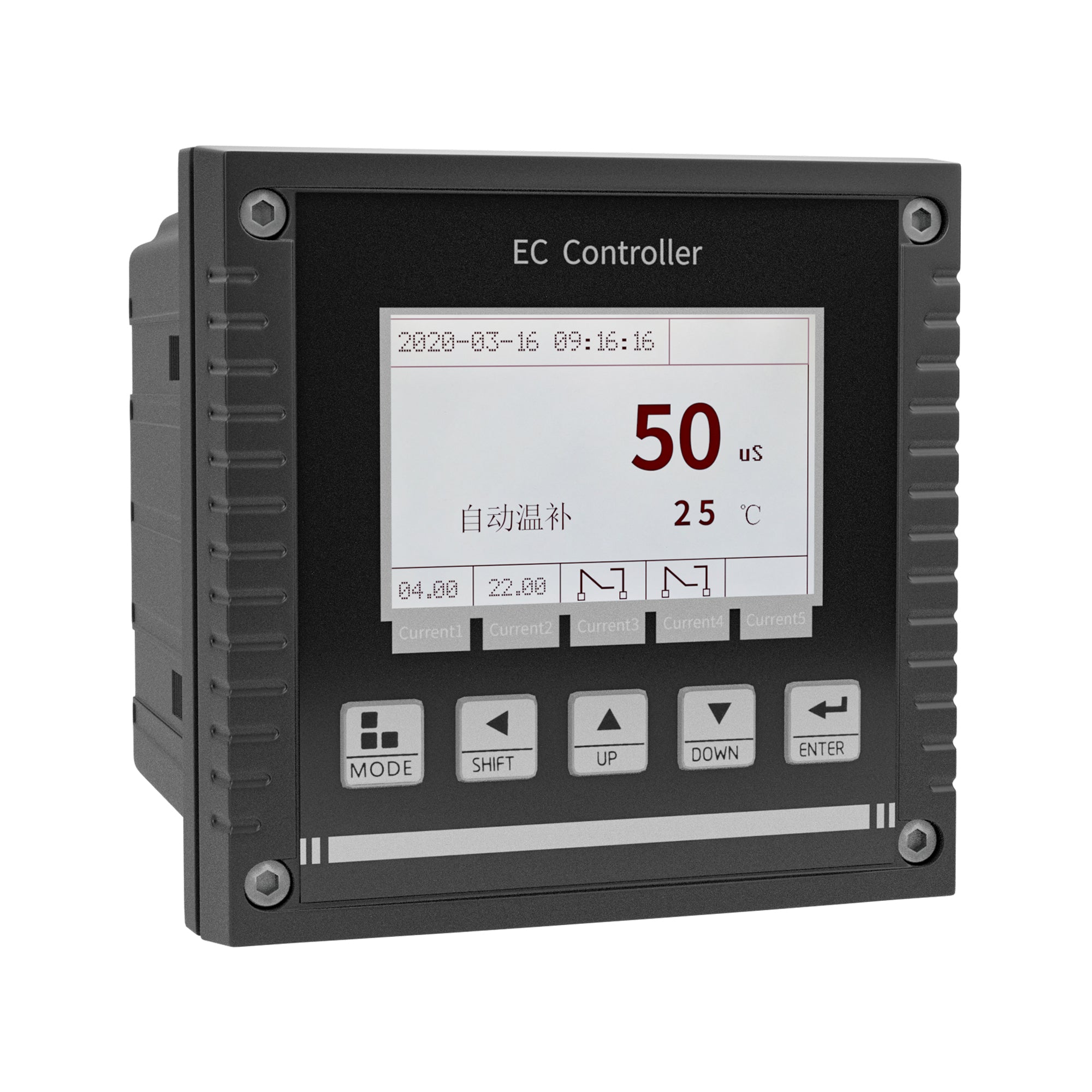

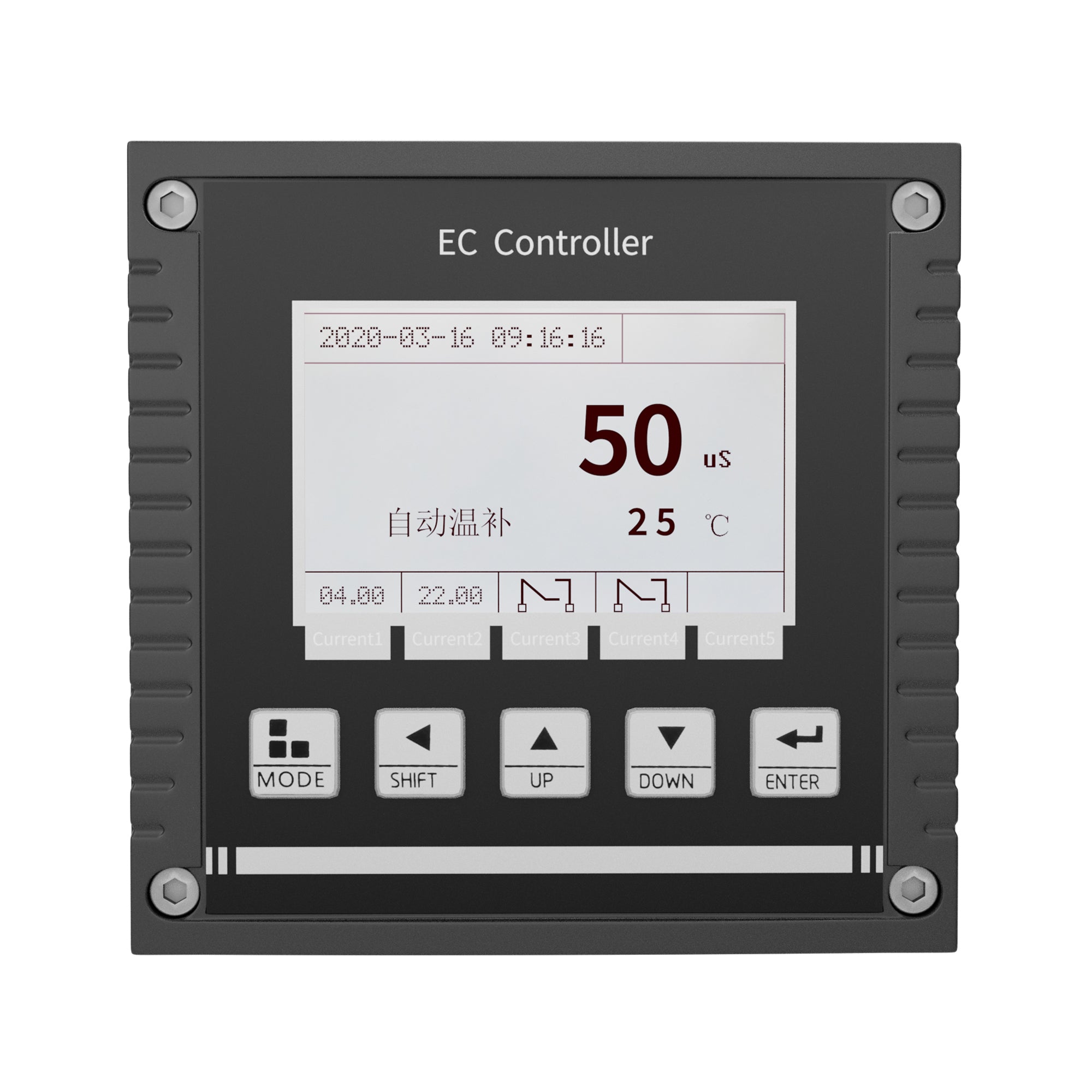

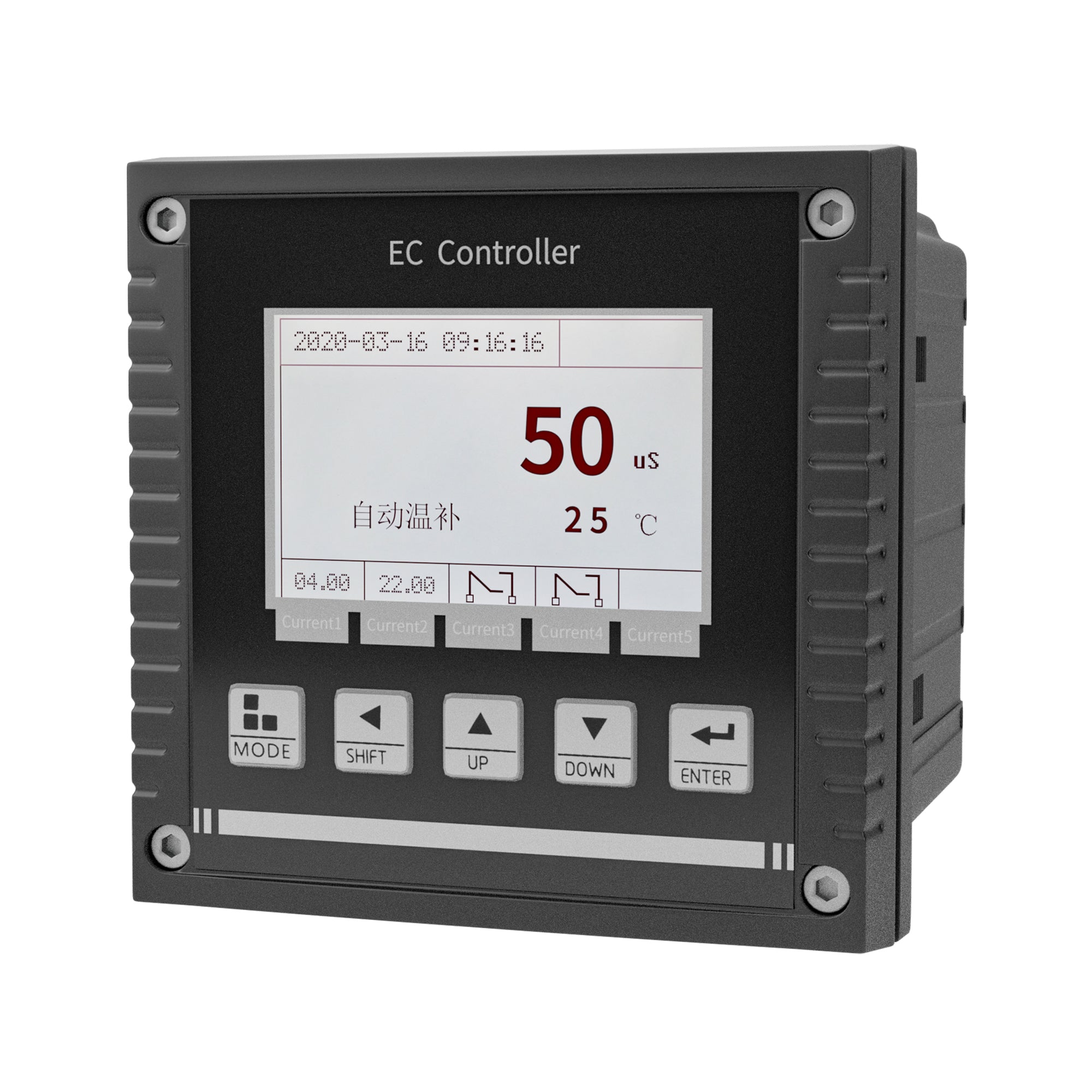

SUP-EC8.0 conductivity meter
Item Code: SUP-EC8.0
EC meter Relay:2 Output: 4-20mA(One channel) and RS485 Power supply: 220VAC Measure range: 0.00uS-2000 mS Size: 144*144mm-EC8.0
SUP-EC8.0 conductivity meter is an intelligent online chemical analyzer, is widely applied for continuous monitoring and measurement of EC value or TDS value or ER value and temperature in the solution in the industry of thermal power, chemical fertilizer, environmental protection, metallurgy, pharmacy, biochemistry, food and water, etc.
Characteristics
Range: 0.01 electrode: 0.00uS/cm～2000mS/cm
Resolution: ±1%FS
Output signal: 4~20mA; Relay; RS485
Power supply: 90 to 260 VAC
Introduction
SUP-EC8.0 Industrial conductivity meter is widely applied for continuous monitoring and measurement of EC value or TDS value or EC value and temperature in the solution in the industry of thermal power, chemical fertilizer, environmental protection, metallurgy, pharmacy, biochemistry, food and water, etc.
TECHNICAL SPECIFICATION
| Product | Industrial conductivity meter |
| Measure range | 0.00uS/cm-2000mS/cm |
| Accuracy | ±1%FS |
| Measuring medium | Liquid |
| Input Resistance | ≥1012Ω |
| Temp compensation | Manual/ Auto temperature compensation |
| Temperature Range | -10-130℃, NTC30K or PT1000 |
| Temperature resolution | 0.1℃ |
| Communication | RS485, Modbus-RTU |
| Communication | RS485, Modbus-RTU |
| Signal output | 4-20mA, maximum loop 500Ω |
| Power supply | 90 to 260V AC |
| Weight | 0.85Kg |
