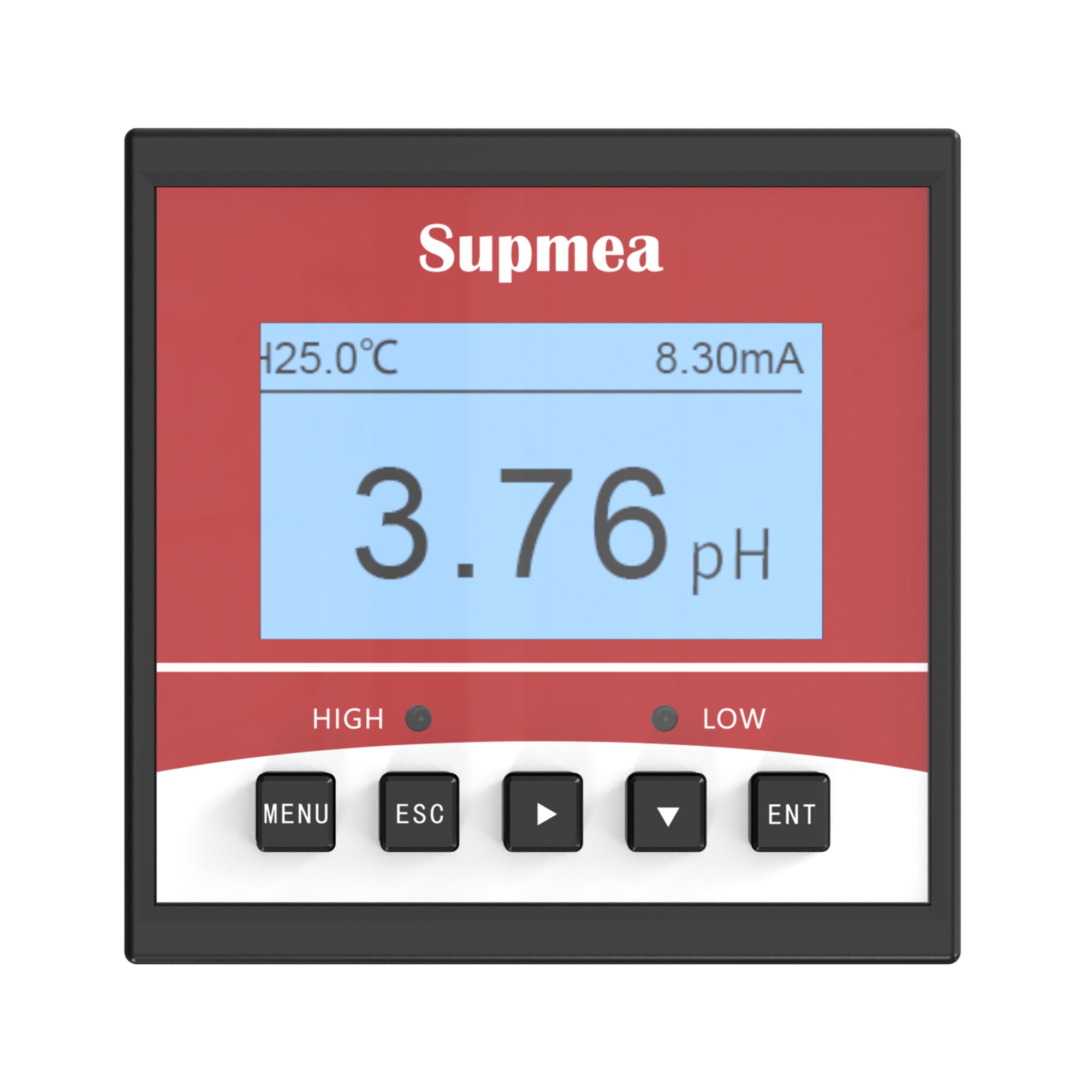

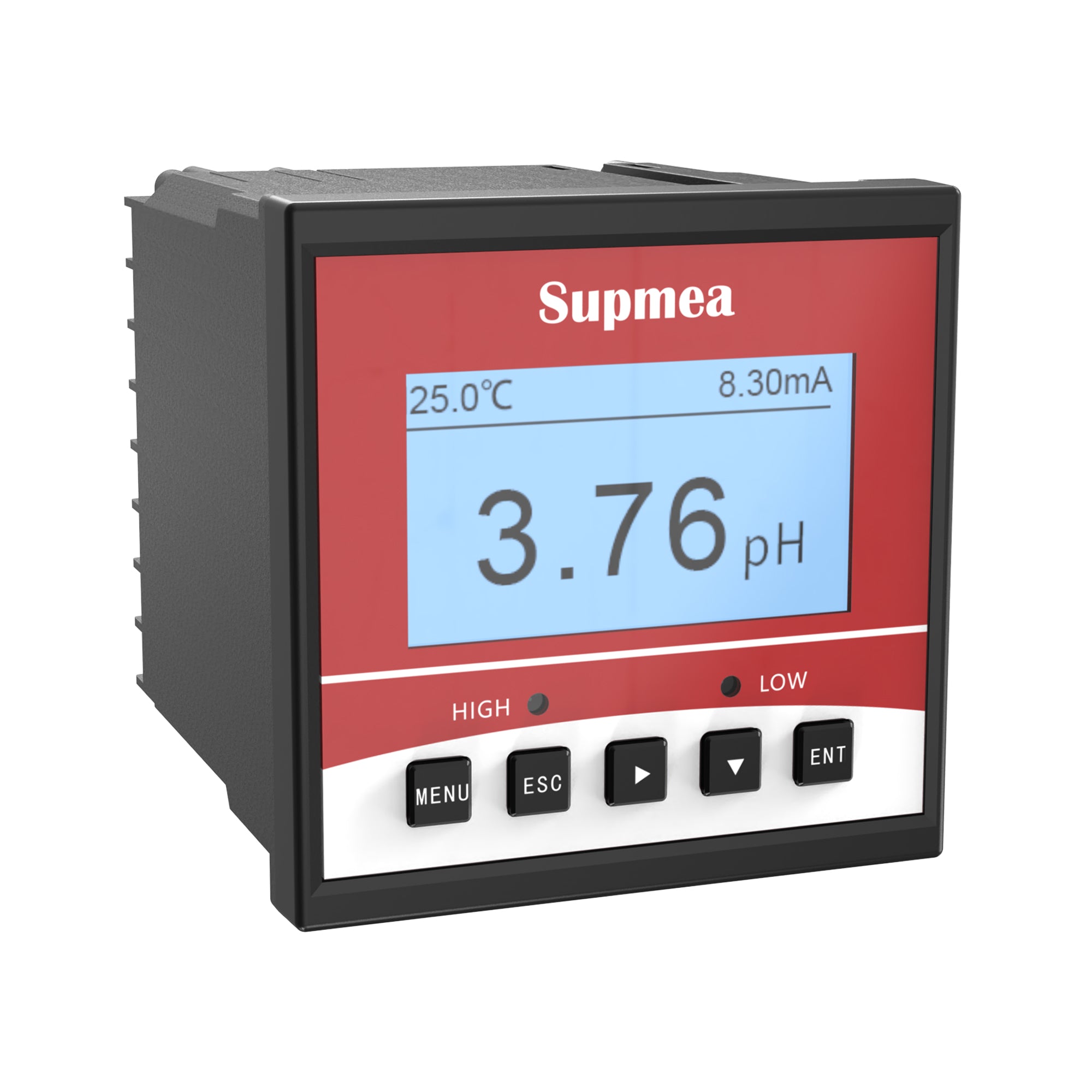

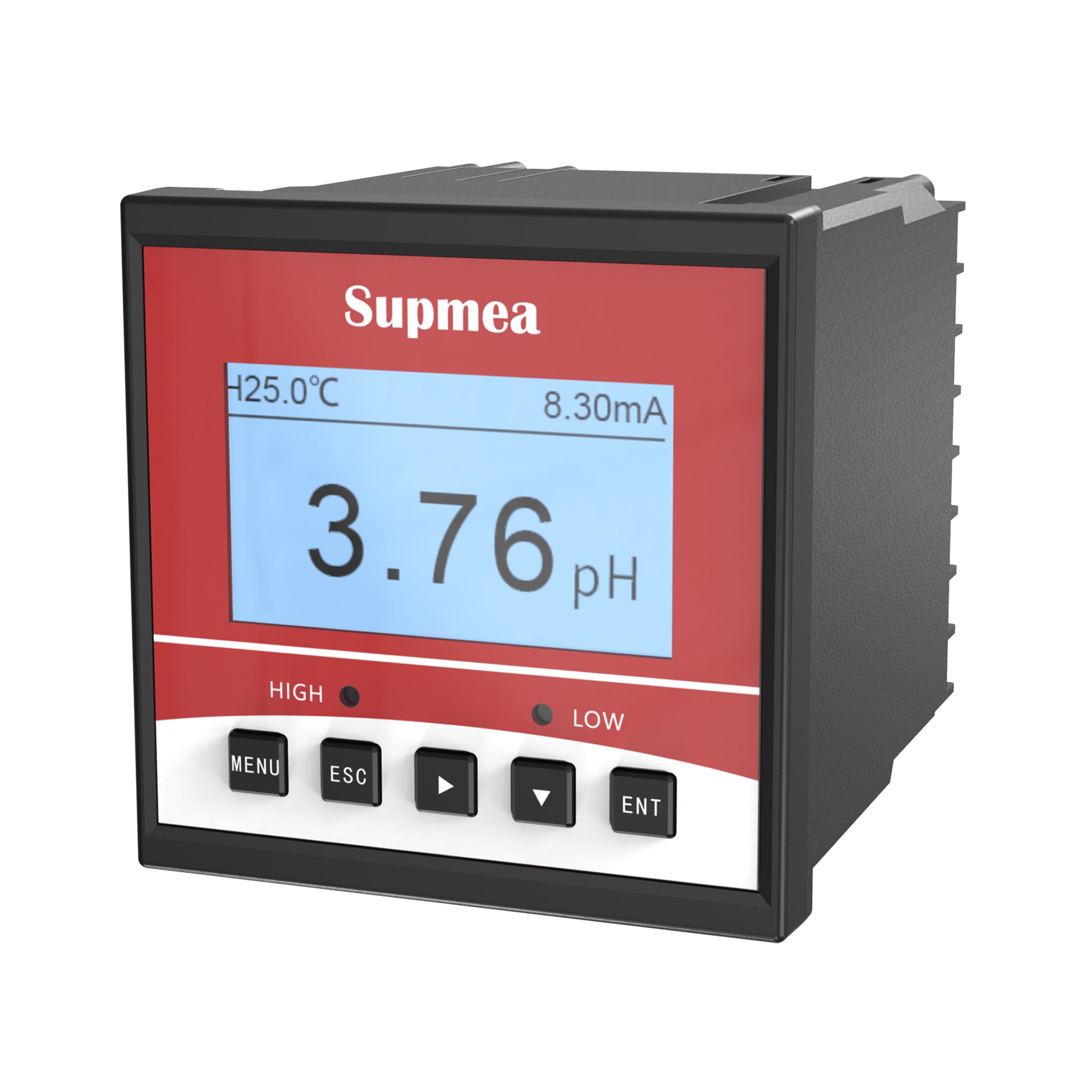

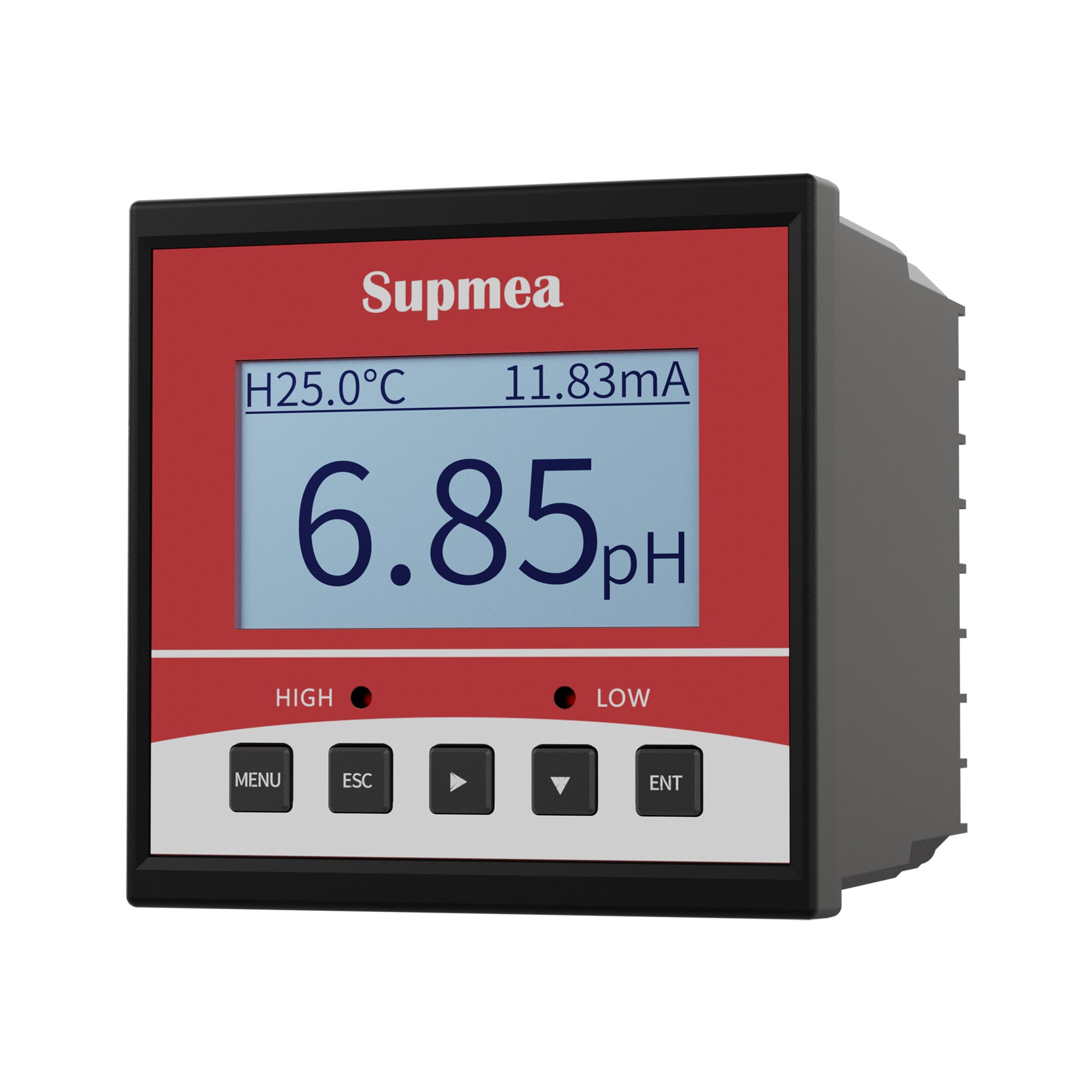

SUP-PH160S pH ORP meter
Item Code: SUP-PH160S
The SUP-PH160S is an industrial pH meter that can be used for pH control in industrial and water treatment processes. It comes with a 4-20mA analog signal, RS-485 digital signal, and relay output, as well as remote data transmission support.
Features
Measure range: pH: 0-14 pH, ±0.02pH; ORP: -1000 ~1000mV, ±1mV
Input Resistance: ≥10~12Ω
Power supply: 220V±10%，50Hz/60Hz
Output: 4-20mA, RS485, Modbus-RTU, Relay
TECHNICAL SPECIFICATION
| Product | pH meter, pH controller |
| Model | SUP-PH160S |
| Measure range | pH: 0-14 pH, ±0.02 pH |
| ORP range | ORP: -1000 ~1000mV -2000~2000mV(optional) |
| Measuring medium | Liquid |
| Input Resistance | ≥1012Ω |
| Temp compensation | NTC10K: -10~60℃ accuracy:±0.3℃ 60~130℃ accuracy:±2℃ Range: -10~130℃ manual/ auto temperature compensation |
| Temperature Range | -10~130℃, NTC10K or PT1000 |
| Relative humidity | (10~85)% |
| Relative humidity | (10~85)% |
| Operation temperature | 0~60℃ |
| Signal output | 4-20mA, maximum loop 750Ω, 0.2%FS |
| Power supply | AC:220V±10%，50Hz/60Hz DC 24VDC |
| Relay output | AC250V, 3A |
