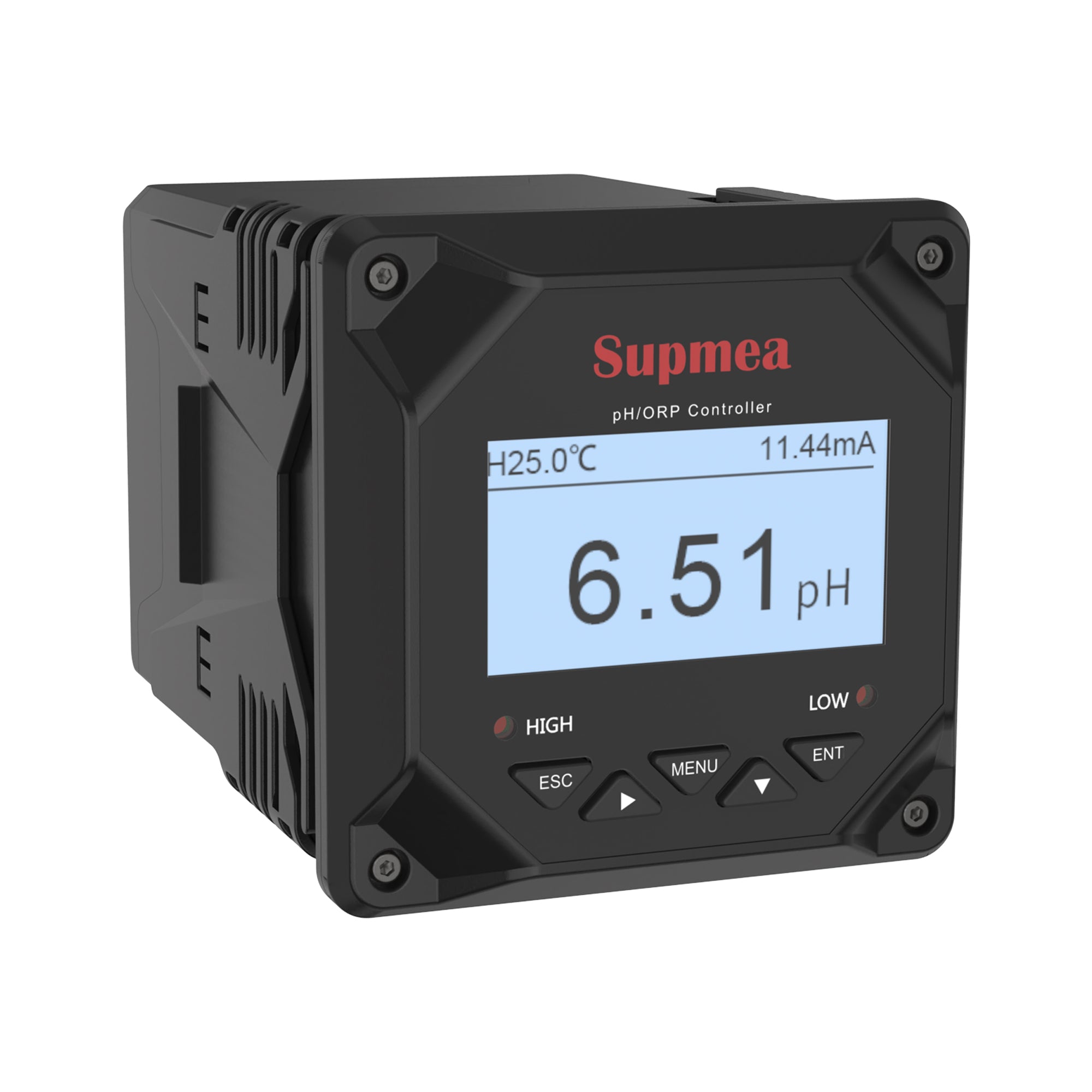

SUP-PH6.5 pH ORP meter
Item Code: SUP-PH6.5
SUP-PH6.5 pH ORP meter
SUP-PH6.5 industrial pH meter is an online pH analyzer which applied in chemical industry metallurgy, environment protection, food, agriculture and so on. With 4-20mA analog signal, RS-485 digital signal and relay output. Can be used for industrial processes and water treatment processes pH control, and support remote data transmission, etc.
Characteristics
Measure range: pH: 0-14 pH, ±0.02pH; ORP: -1000 ~1000mV, ±1mV
Input Resistance: ≥10~12Ω
Power supply: 220V±10%，50Hz/60Hz
Output: 4-20mA, RS485, Modbus-RTU, Relay
TECHNICAL SPECIFICATION
| Product | pH meter, pH controller |
| Model | SUP-PH6.5 |
| Measure range | pH: 0-14 pH, ±0.02 pH |
| ORP range | ORP: -1000 ~1000mV, ±1mV |
| Measuring medium | Liquid |
| Input Resistance | ≥1012Ω |
| Temp compensation | Manual/ Auto temperature compensation |
| Temperature Range | -10~130℃, NTC10K or PT1000 |
| Signal output | 4-20mA, maximum loop 750Ω, 0.2%FS |
| Signal output | 4-20mA, maximum loop 750Ω, 0.2%FS |
| Power supply | 220V±10%, 24V±20%, 50Hz/60Hz |
| Relay output | 250V, 3A |
SUP-PH6.5 pH ORP meter
Sale priceDhs. 300.00
Regular price (/)
