8651 AZ Digital Handheld Water Quality pH & ORP Meter
Item Code: VZ8651AZ
The portable 8651 AZ pH and ORP Meter can measure the pH and oxidation-reduction potential value, which has been widely operated in Water Quality Testing applications.
Features
8651 AZ pH and Oxidation Reduction Potential Meter features:
* Integrated pH and ORP measurements in one
* One-touch auto-calibration up to 5 points
* Calibration values are adjustable

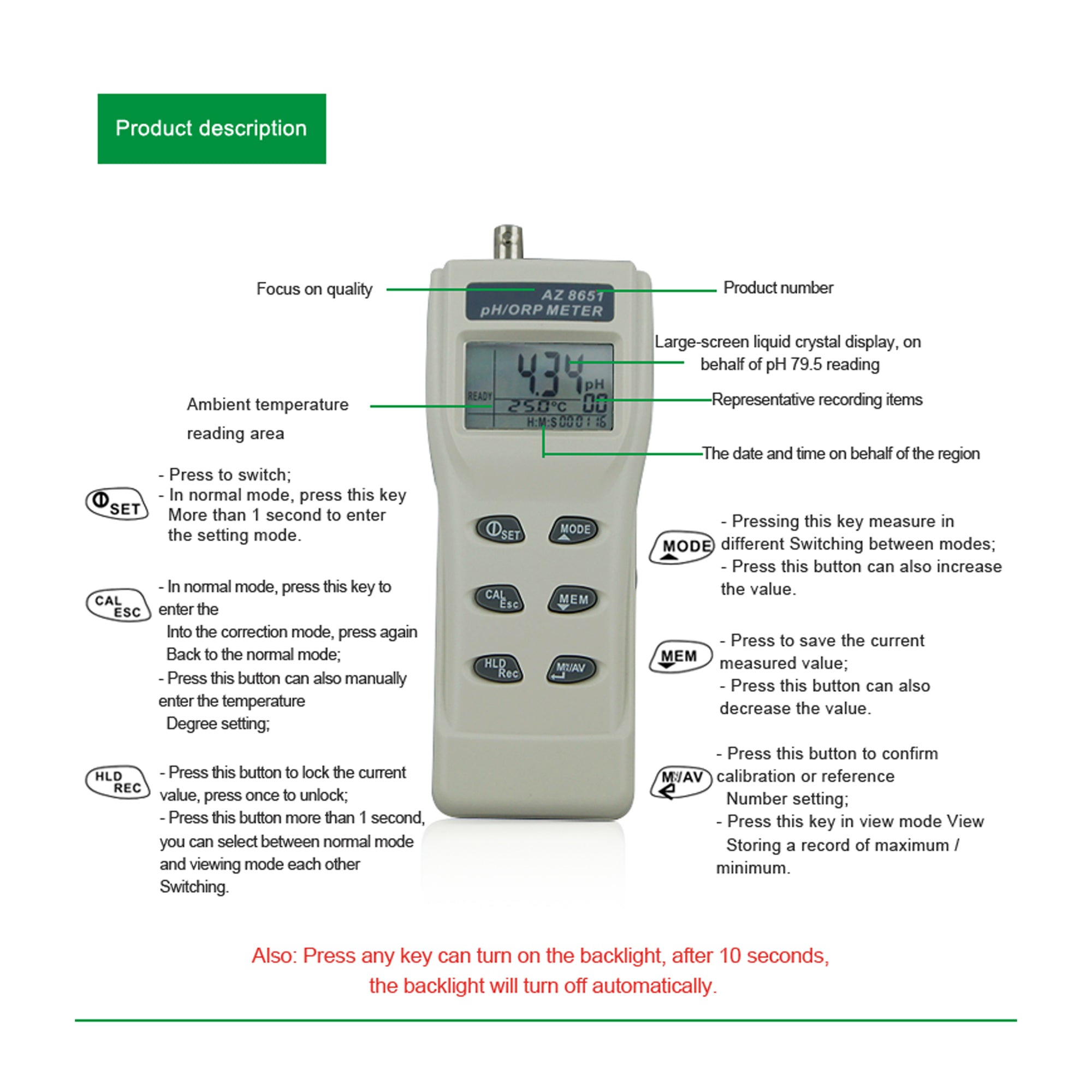

* Dual display pH / mV & Temperature
* Backlight display for use in dark area
* pH automatic buffer recognition to avoid errors during calibration
* pH electrode status indication
* Hold function to freeze the record
* Max./Min review of memorized data
* Easy to view probe calibration data.
* "Ready" icon on LCD to indicate the reading is stable or not
* USB connection for online logging or uploading 99 memories to PC for analysis
* Automatic or manual temperature compensation is allowed
* Could be powered by an adaptor for long-time use
* Auto power off to save battery power
* Temperature unit ℃/°F is switchable
* Excellent tool as the Oxidation-reduction potential (ORP) meter
Application

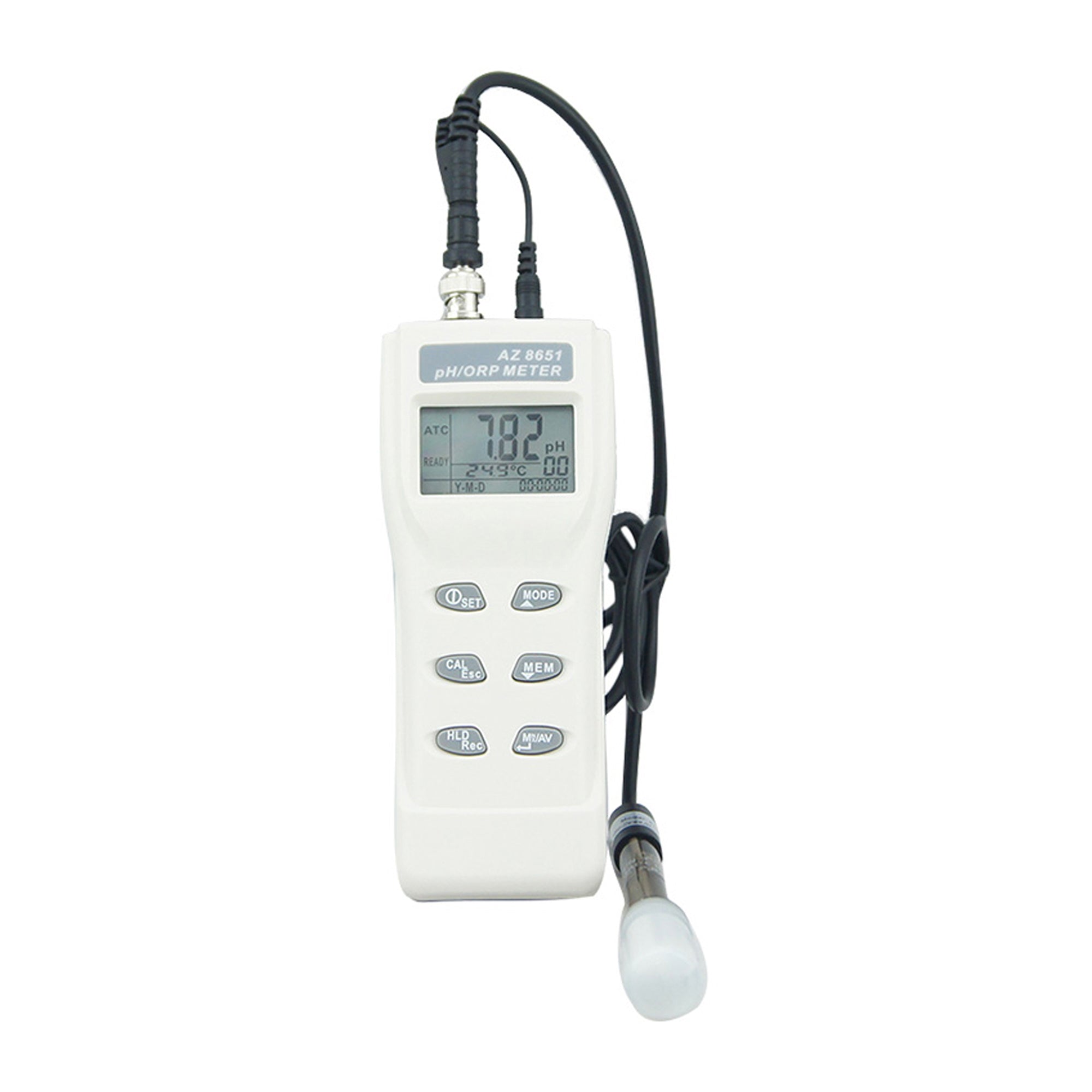

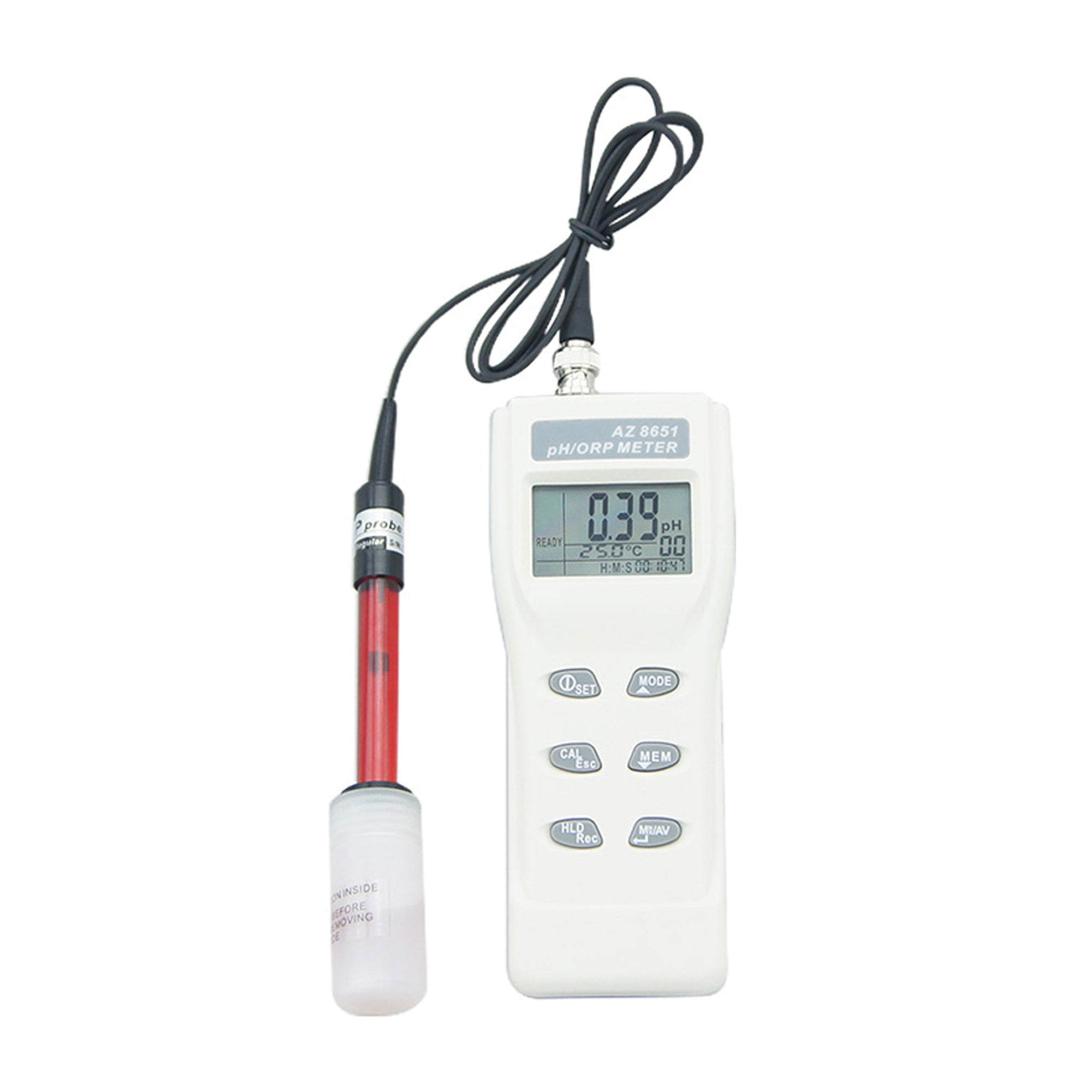

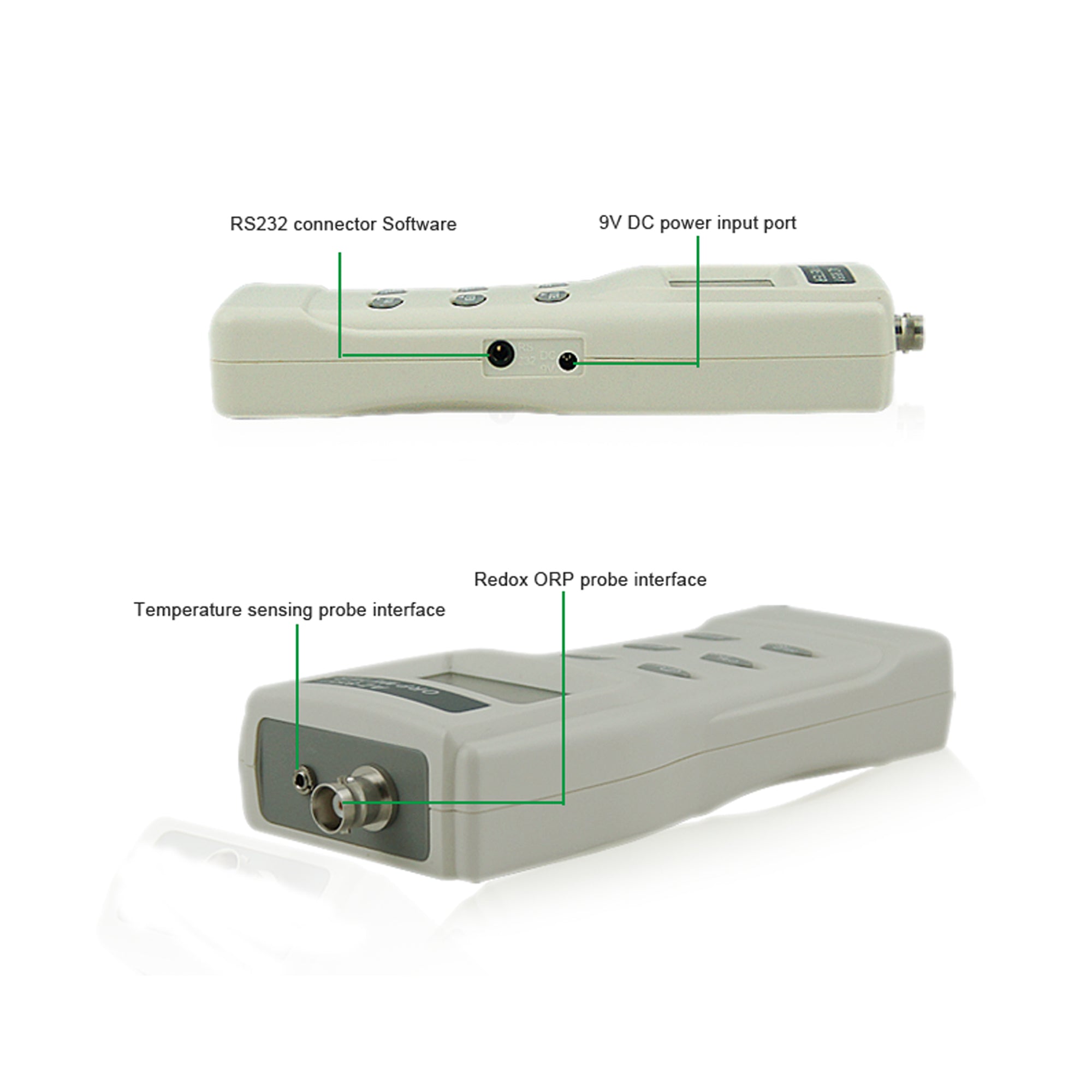

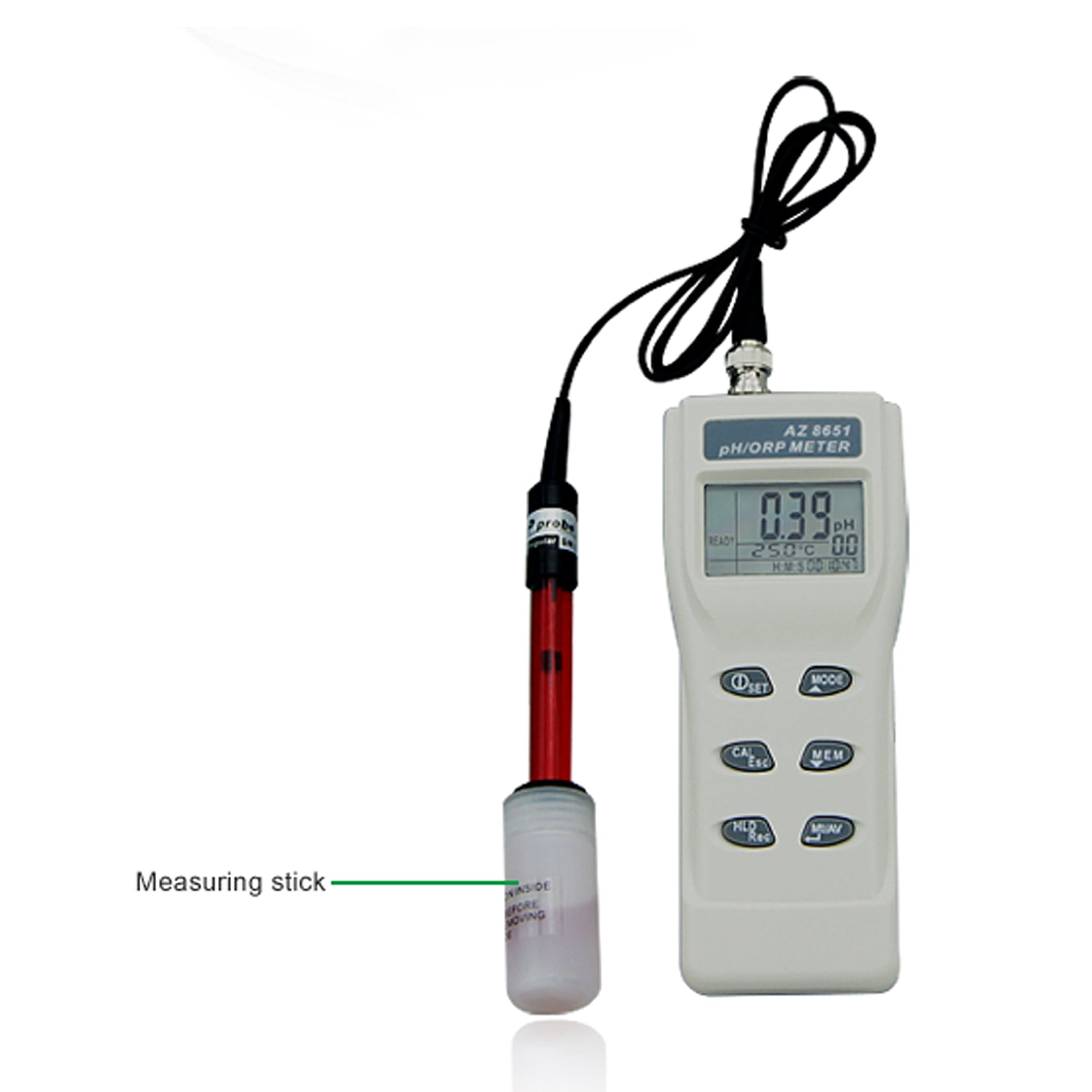

The pH sensor electrode should connect to BNC port on the top of the 8651 AZ pH and ORP Meter, and its temperature sensor could be inserted into the phone jack port next to the BNC.
AZ Instrument Corp. provides the following different pH probes to operate with 8651 AZ pH and ORP Meter,
| Model No. | Description |
| VZ86P3AZ | ATC pH probe |
| VZ86P2AZ | pH probe without ATC function |
| VZ86P4AZ | pH probe for Low Ion Strength without ATC function |
| VZ86P6AZ | Full glass pH probe without ATC function |
| VZ86P7AZ | Sharp tip pH probe without ATC function |
| VZ86P1AZ | Flat surface pH probe without ATC function |

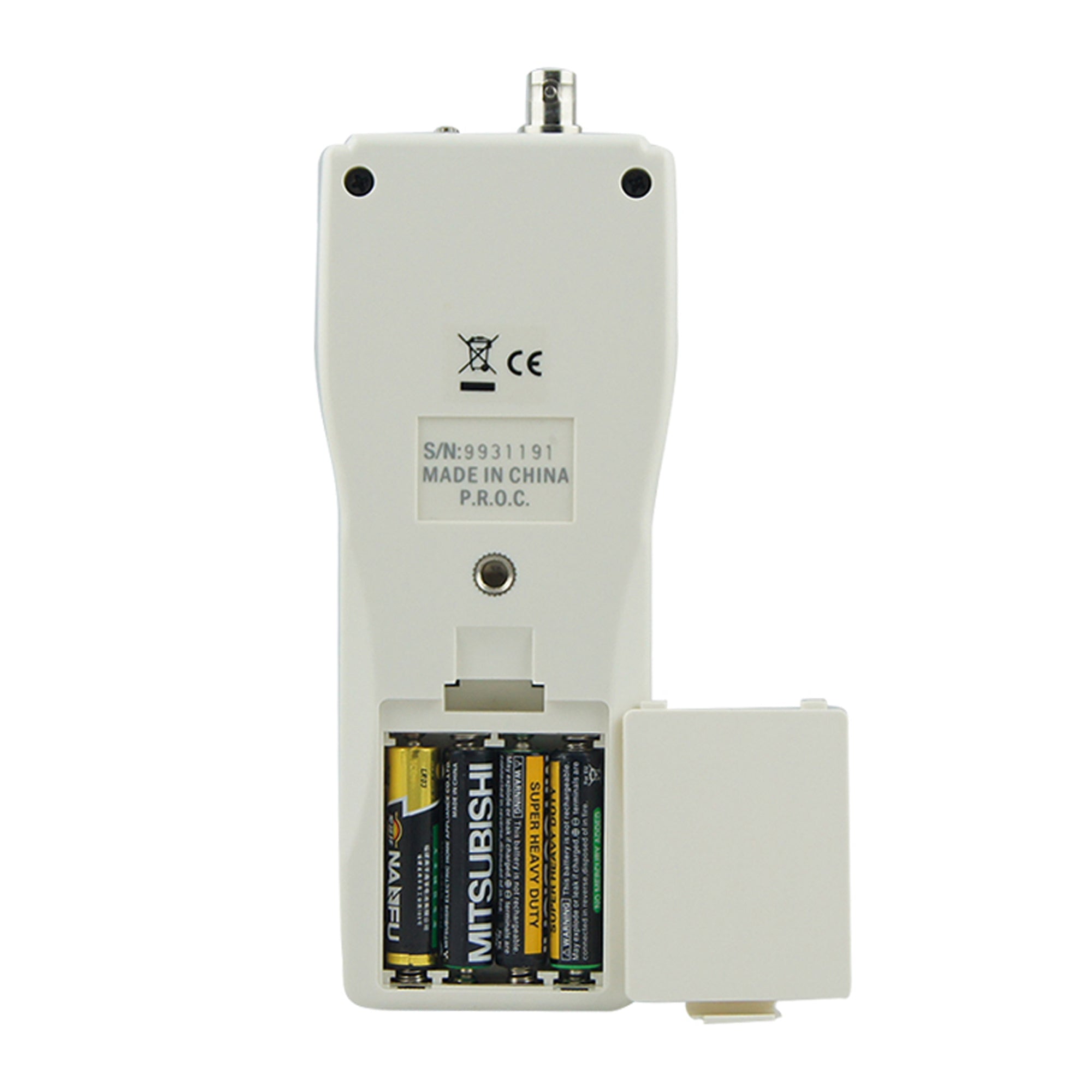

The 8651 AZ pH and ORP Meter could be powered by 4pcs AAA batteries for carry easily or a 9VDC adaptor for the long-time measuring plan with the tripod. The meter has a backlight function, which could let the user operate in a dark area.
The 8651 AZ pH and ORP Meter could link to the PC via USB cable to capture the online data and display the pH, mV, oxidation-reduction potential (ORP), and temperature readings with real-time output. Users can retrieve files, save the data for operating data analysis, record statistics....versatile functions for different purposes.
The 8651 AZ pH and ORP Meter could be the best Water Quality tester for all professional measuring purposes, including the LAB, water treatment business, Aquaculture, Aquafarm, swimming pool, or other related industries.
The 8651 AZ pH and ORP Meter was designed and manufactured by AZ Instrument, a well-experienced manufacturer of water testing meter companies.
TECHNICAL SPECIFICATION
| pH Measuring Range | 0.00~14.00 |
| pH Accuracy | ±0.02 |
| pH Resolution | 0.01 |
| mV Measuring Range | -1999~1999 mV |
| mV Accuracy | ±0.2mV (-199.9~1999.9mV) or ±2mV (others) |
| mV Resolution | ±0.1mV (-199.9~1999.9mV) or ±1mV (others) |
| Temperature Measuring Range | 0~60.0℃ |
| Temperature Accuracy | ±0.3℃ |
| ATC | ATC |
| ATC | ATC |
