86502 AZ Water Quality Professional Benchtop Meter - pH/ORP/mV
Item Code: VZ86502AZ

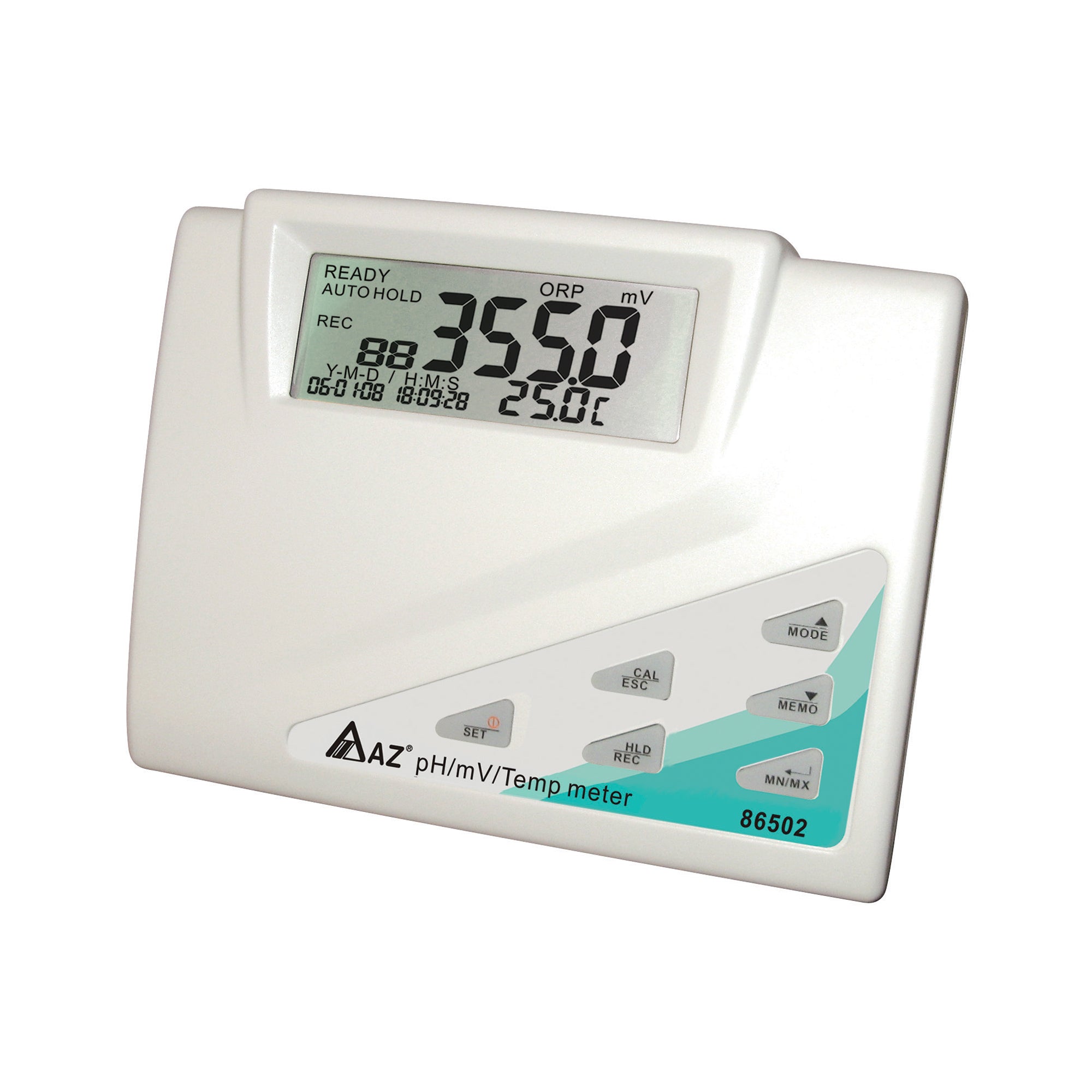

The 86502 AZ Bench Top Water Quality Meter - pH/ORP/mV can measure the pH, ORP, and mV. The big LCD screen could be multi-display. For the pH and ORP measurement, the sensor electrode should be connected to the BNC port.
Features
86502 AZ Bench Top Water Quality Meter - pH/ORP/mV features:
* Multi Display pH, mV, ORP & temperature
* Automatic buffer recognition to avoid errors during calibration
* Maximum 5 points calibration points for pH Benchtop meters
* Hold function to freeze the record
* Max./Min. review of memorized data
* Reliable and replaceable probe with temperature compensation
* Auto or manual temperature compensation
* Convenient to view the calibration information of the probe
* The "Ready" icon on the LCD indicates the reading is stable
* 99 memories and could be downloaded to PC for analysis
* Collect data via RS232 interface by linking with PC
* Analog output for chart recorders
* Durable electrode holder for left & right side placement
Application
There is a drawer built-in at the bottom of the 86502 AZ Combo Bench Top Water Quality Meter, which could let users store testing data, exam results, memorandum, or important notes in the drawer. That would be more convenient for any professional study and research in a lab.

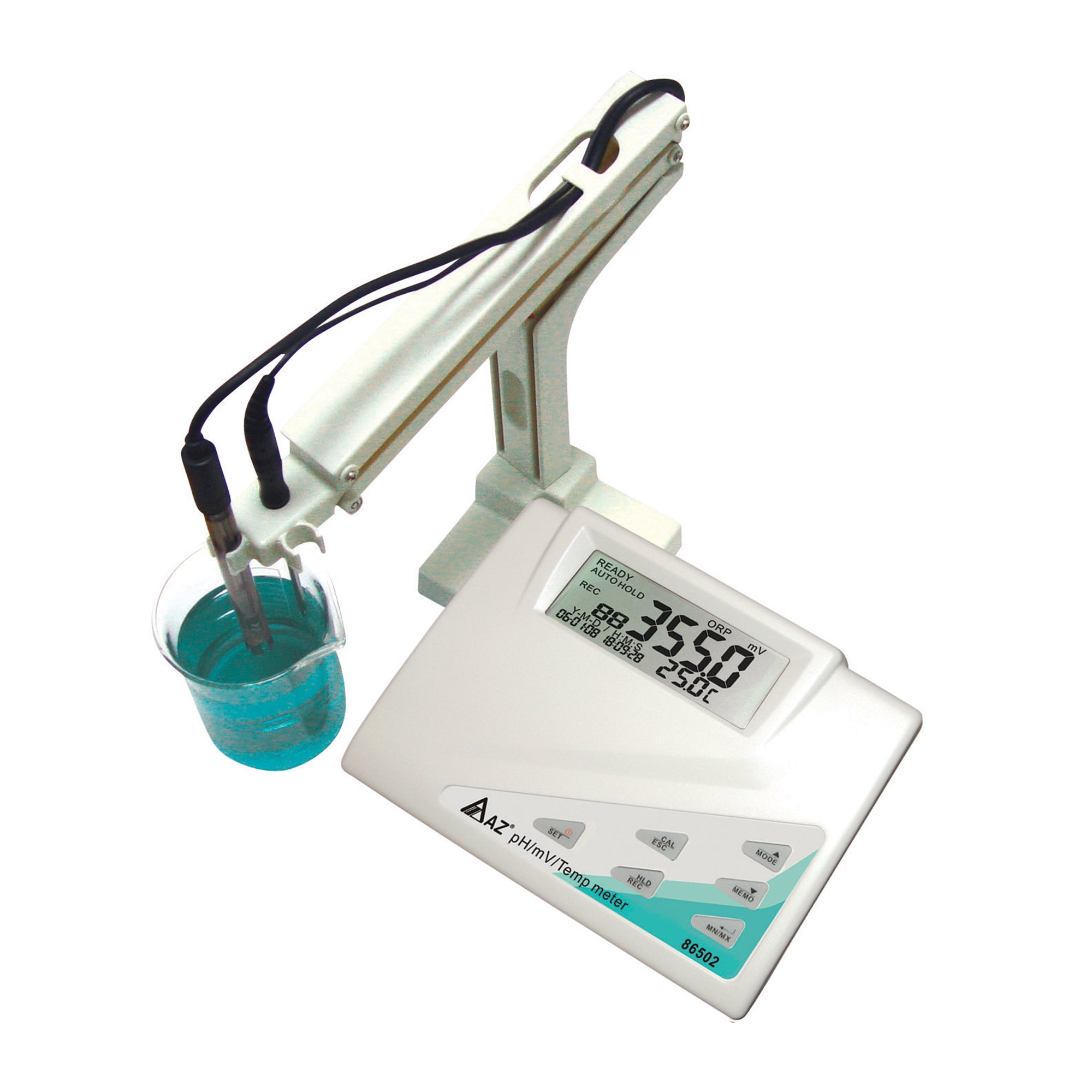

The holder of the 86502 AZ Combo Bench Top Water Quality Meter could be fixed either on the right side or the left side of the meter, that design is friendly for different operations.

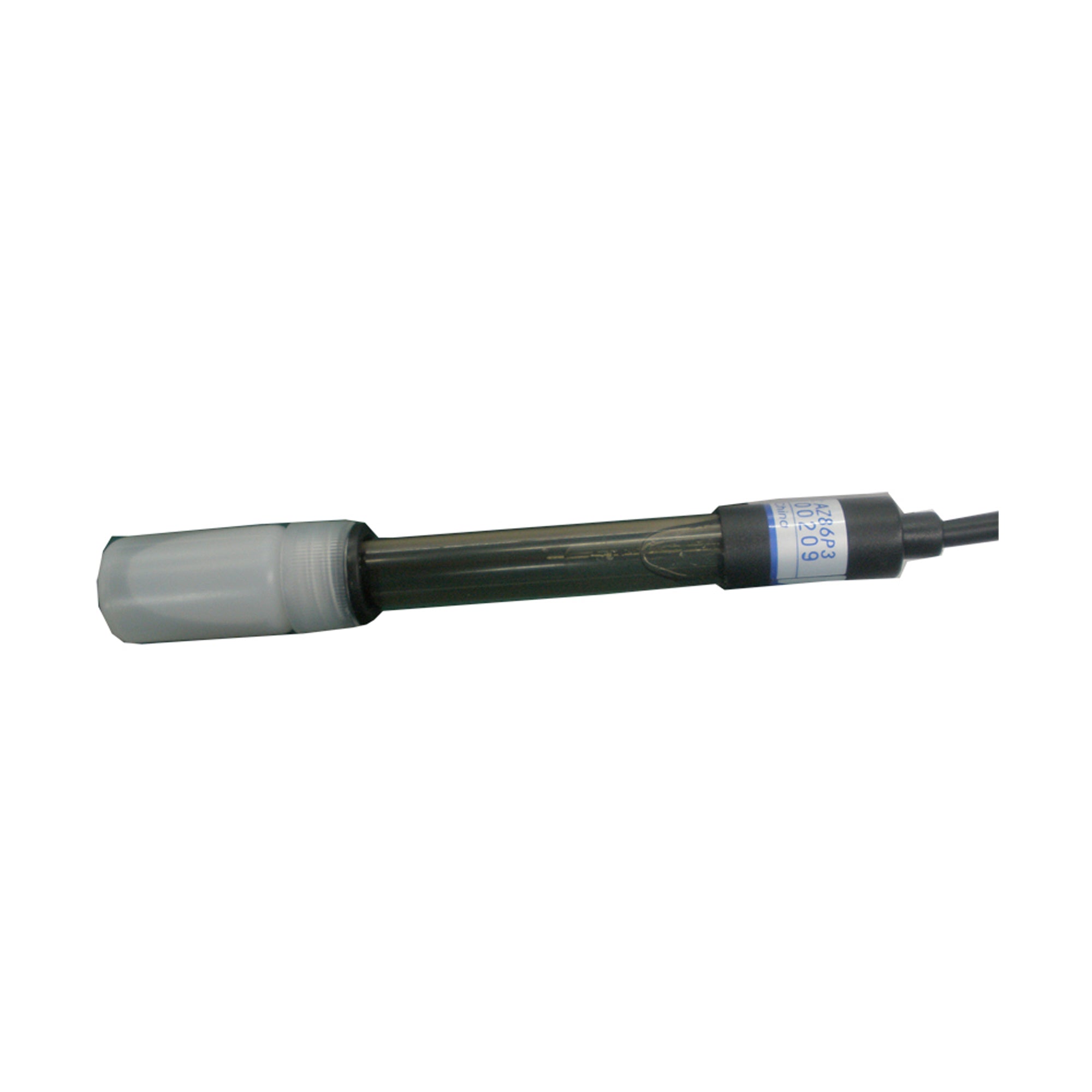

We provide the following different pH probes that could be operated with 86502 AZ Combo Bench Top Water Quality Meter,
| Model No. | Description |
| VZ86P3AZ | ATC pH probe |
| VZ86P2AZ | pH probe without ATC function |
| VZ86P4AZ | pH probe for Low Ion Strength without ATC function |
| VZ86P6AZ | Full glass pH probe without ATC function |
| VZ86P7AZ | Sharp tip pH probe without ATC function |
| VZ86P1AZ | Flat surface pH probe without ATC function |
User could connect the 86502 AZ Combo Bench Top Water Quality Meter to a PC via RS232 cable to upload the real-time measurement values and memories for further analysis.
If the user need it, the 86502 AZ Combo Bench Top Water Quality Meter also could connect to the chart recorder or other data collection devices via its ANALOG port.
The 86502 AZ Combo Bench Top Water Quality Meter could be the best tool for all professional measuring purposes, including the LAB, water treatment business, Aquaculture, Aquafarm, swimming pool, or other related industries.
86502 AZ Combo Bench Top Water Quality Meter was being designed and manufactured by AZ Instrument, a well-experienced manufacturer of Environmental Measuring instruments.
TECHNICAL SPECIFICATION
| pH Measuring Range | 0.00~14.00 |
| pH Resolution | 0.01 |
| pH Accuracy | ±0.02 |
| mV Measuring Range | ±1999 mV |
| mV Resolution | ±0.1 mV (-199.9~199.9 mV) or ±1 mV (others) |
| mV Accuracy | ±0.2 mV (-199.9~199.9 mV) or ±2 mV (others) |
| Temperature Measuring Range | 0~80.0℃ |
| Temperature Resolution | 0.1 |
| Compatible Probe | pH probe (86P3, 86P2, 86P4, 86P6, 86P7, 86P1) ORP probe (850P, 86P5) |
| Compatible Probe | pH probe (86P3, 86P2, 86P4, 86P6, 86P7, 86P1) ORP probe (850P, 86P5) |
