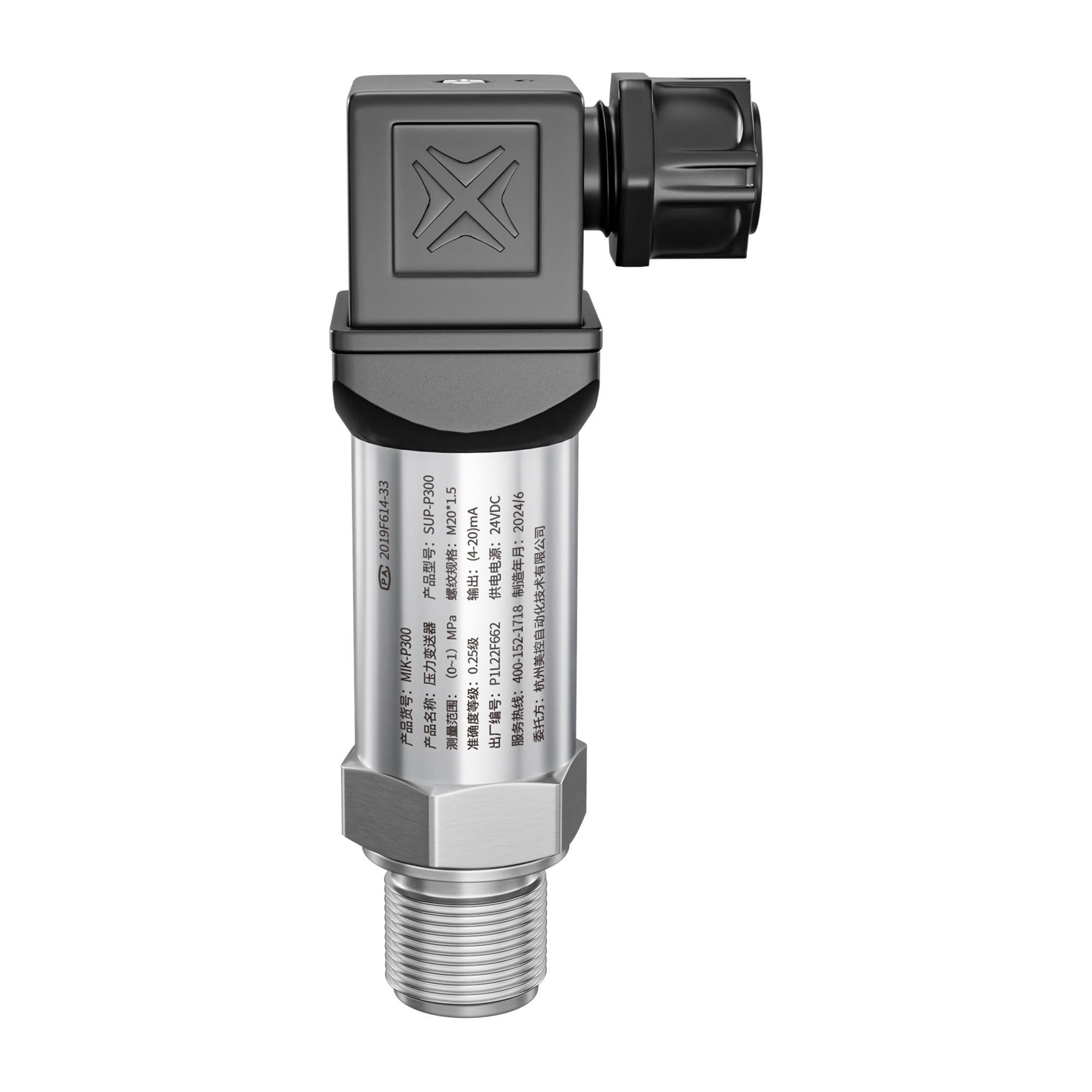

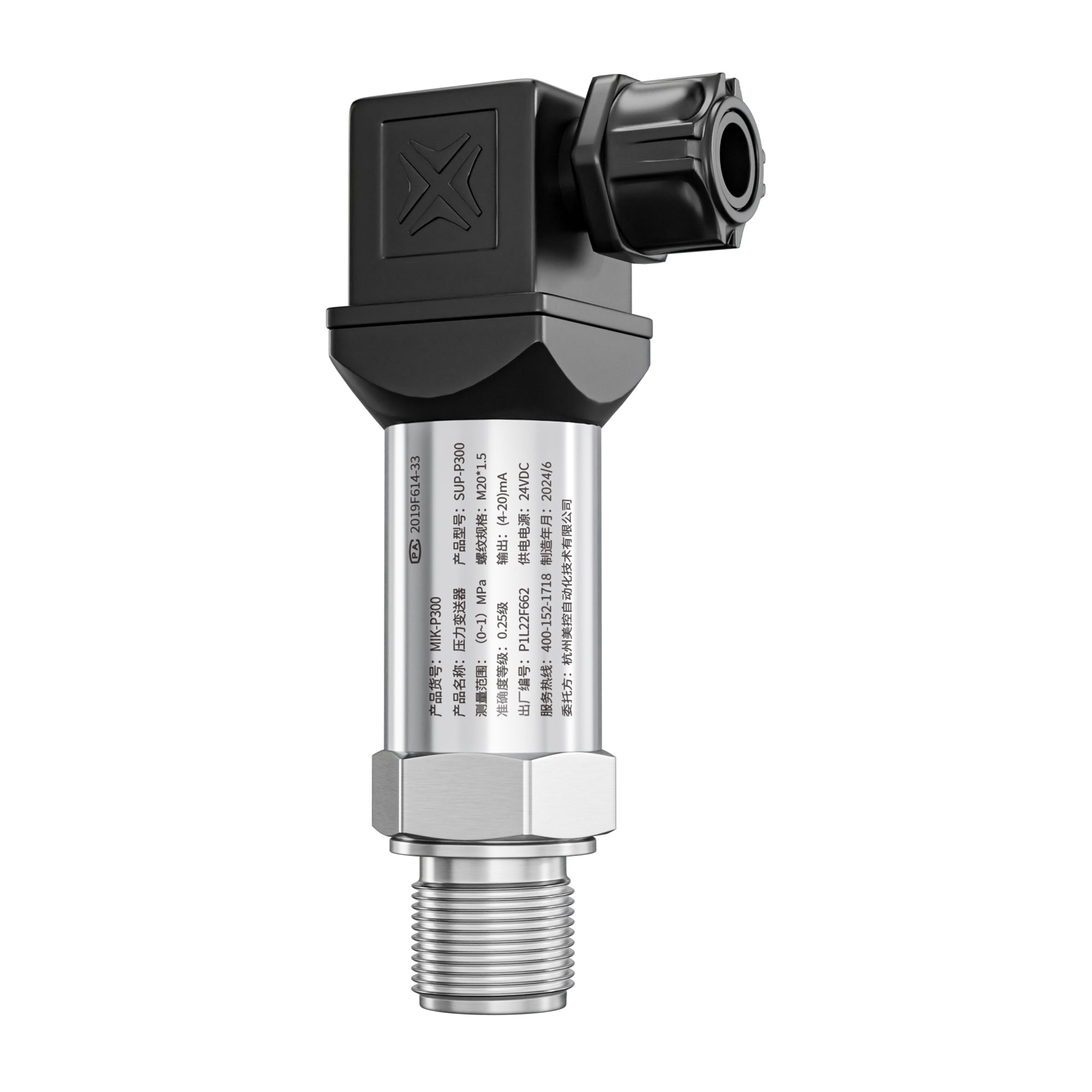

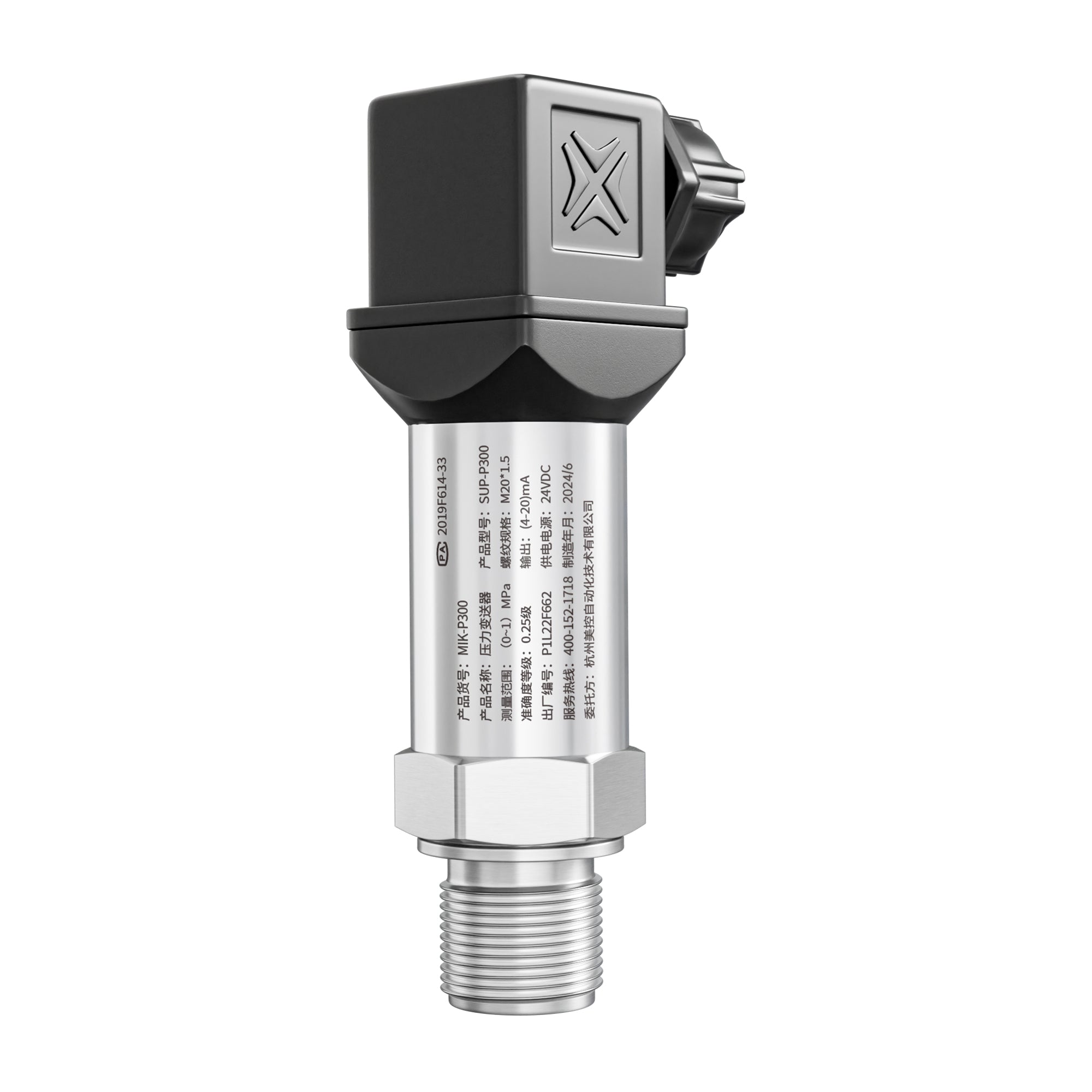

SUP-P300 Pressure transmitter with compact size for universal use
Item Code: SUP-P300
SUP-P300 is a piezoresistive pressure sensor with compact design and stainless steel body SS304 and SS316L diaphragm, can work in the non-causticity environment, with 4-20mA signal output. P300 series is widely applied in pressure measurement for aviation, aerospace, automobile, medical treatment equipment, HVAC etc.
Characteristics
Range: -0.1...0...60MPa
Resolution: 0.5% F.S; 0.3%F.S optional
Output signal: 4...20mA; 1...5V; 0...10V; 0...5V; RS485
Installation: Thread
Power supply: 24VDC (9 ~ 36V)
TECHNICAL SPECIFICATION
| Product | Pressure transmitter |
| Model | SUP-P300 |
| Measure range | -0.1MPa…0~10kPa…60Mpa |
| Pressure type | Gauge pressure, Adiabatic pressure, Sealing pressure |
| Accuracy | 0.5% F.S; 0.2%F.S,0.25%F.S, optional |
| Output signal | 4~20mA; 1~5V; 0~10V; 0~5V; RS485 |
| Temperature compensation | -10~70 ℃ |
| Working temperature | -20~85 ℃ |
| Storage temperature | -40~85 ℃ |
| Storage temperature | -40~85 ℃ |
| Overload pressure | 0.035~10MPa（150%FS）, 10~60MPa（125%FS） |
| Long-term stability | ± 0.2%FS/year |
| Power supply | 10~32V (4~20mA); 12~32V (0~10V); 8~32V (RS485, 0~5V, 1~5V) |
| Ingress protection | IP65 |
