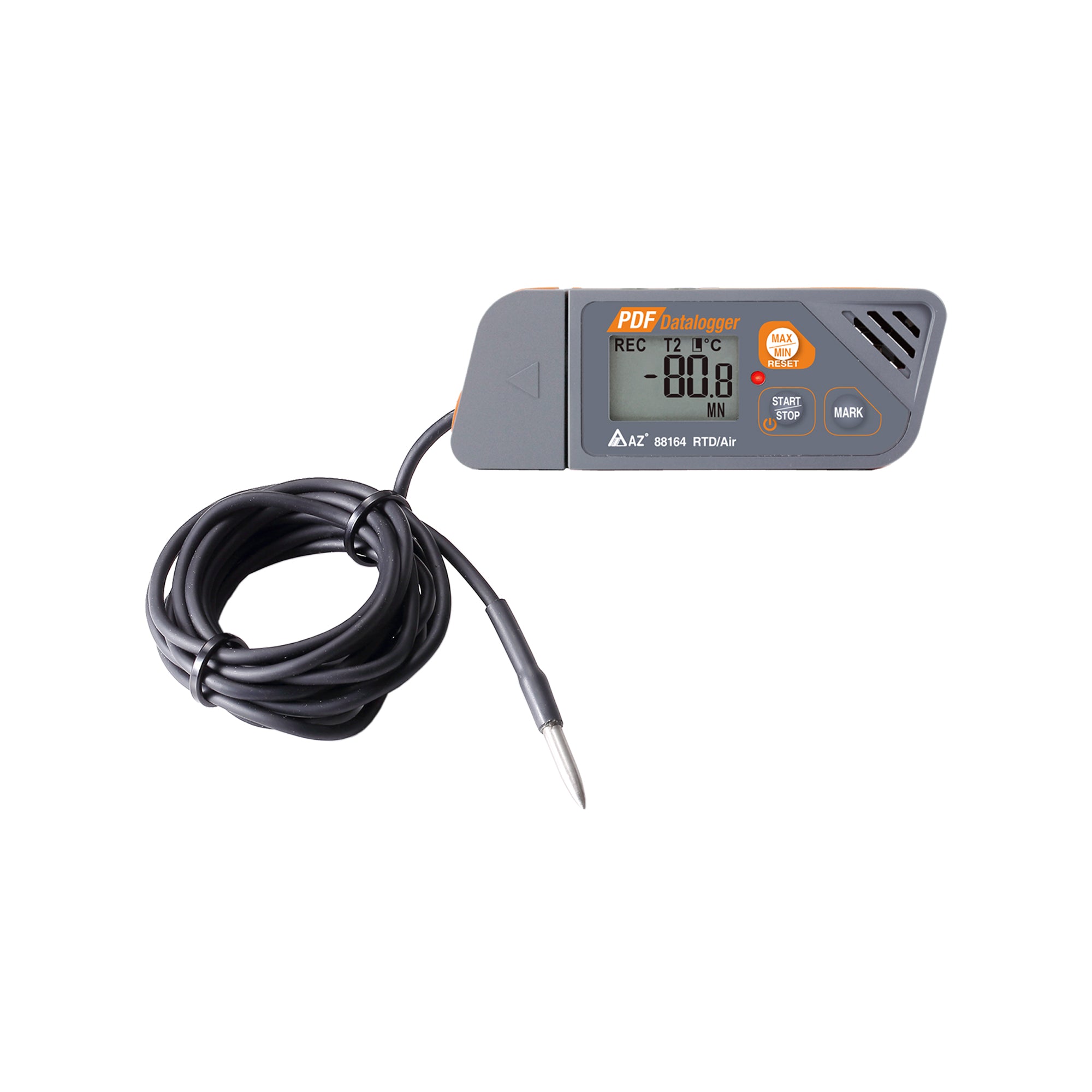

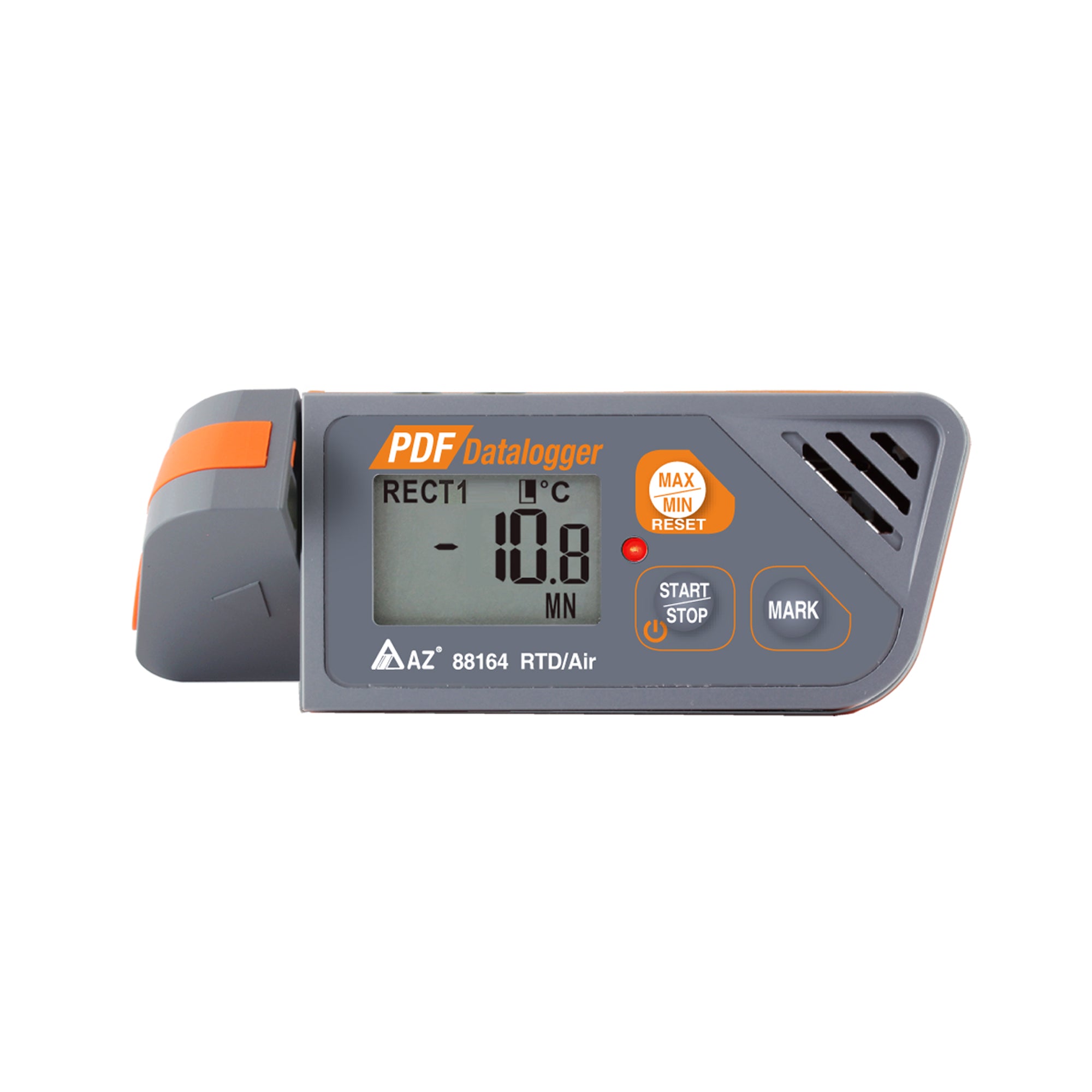

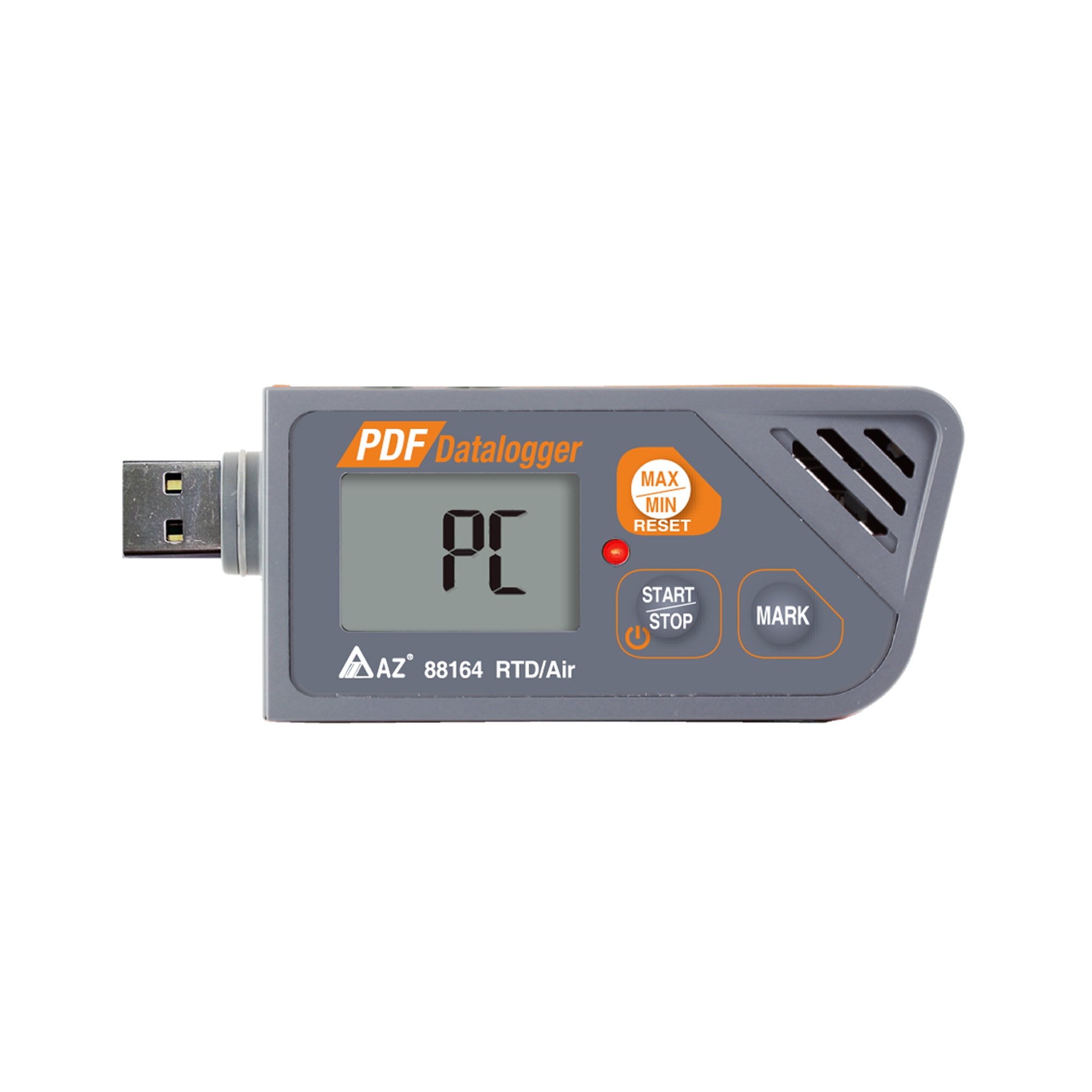

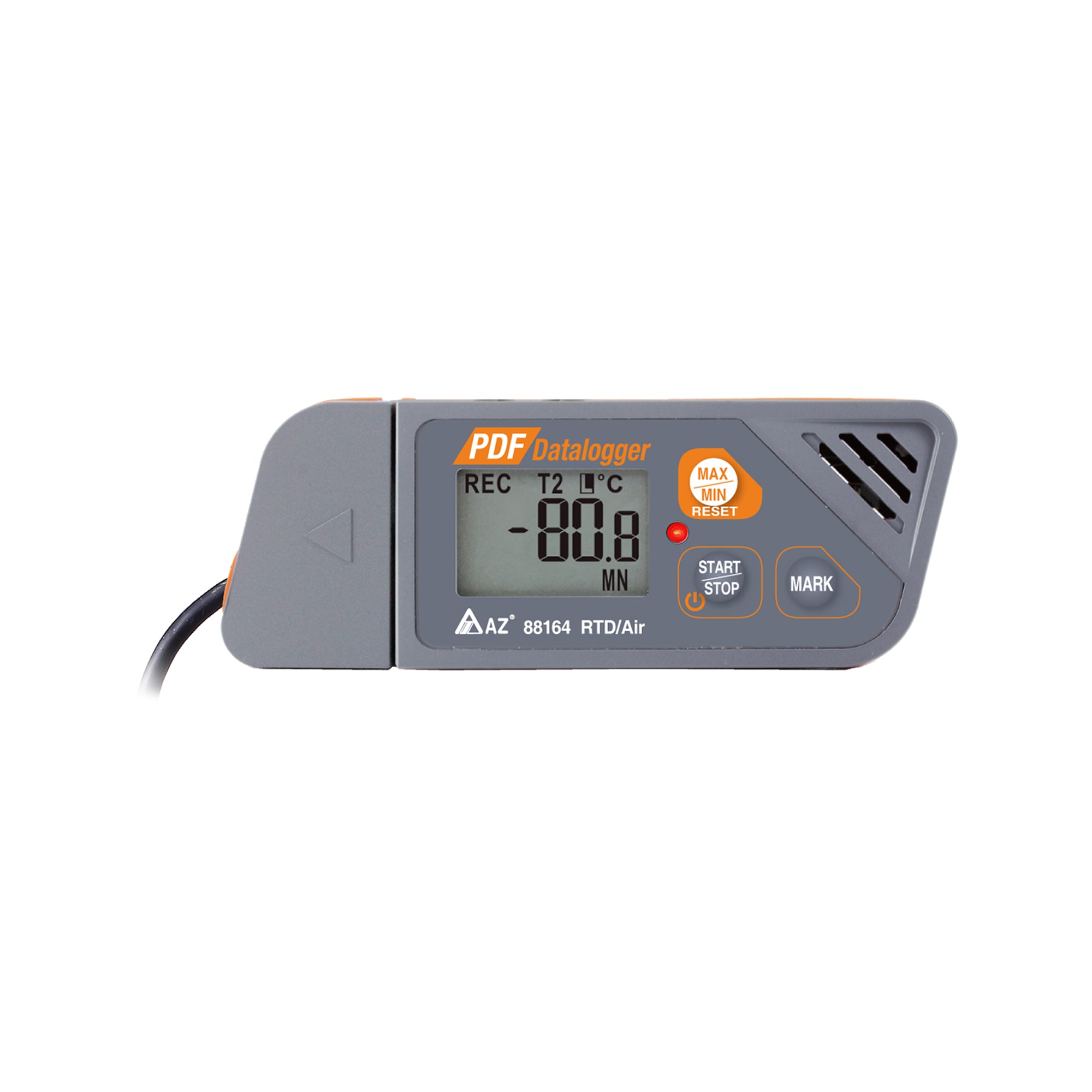

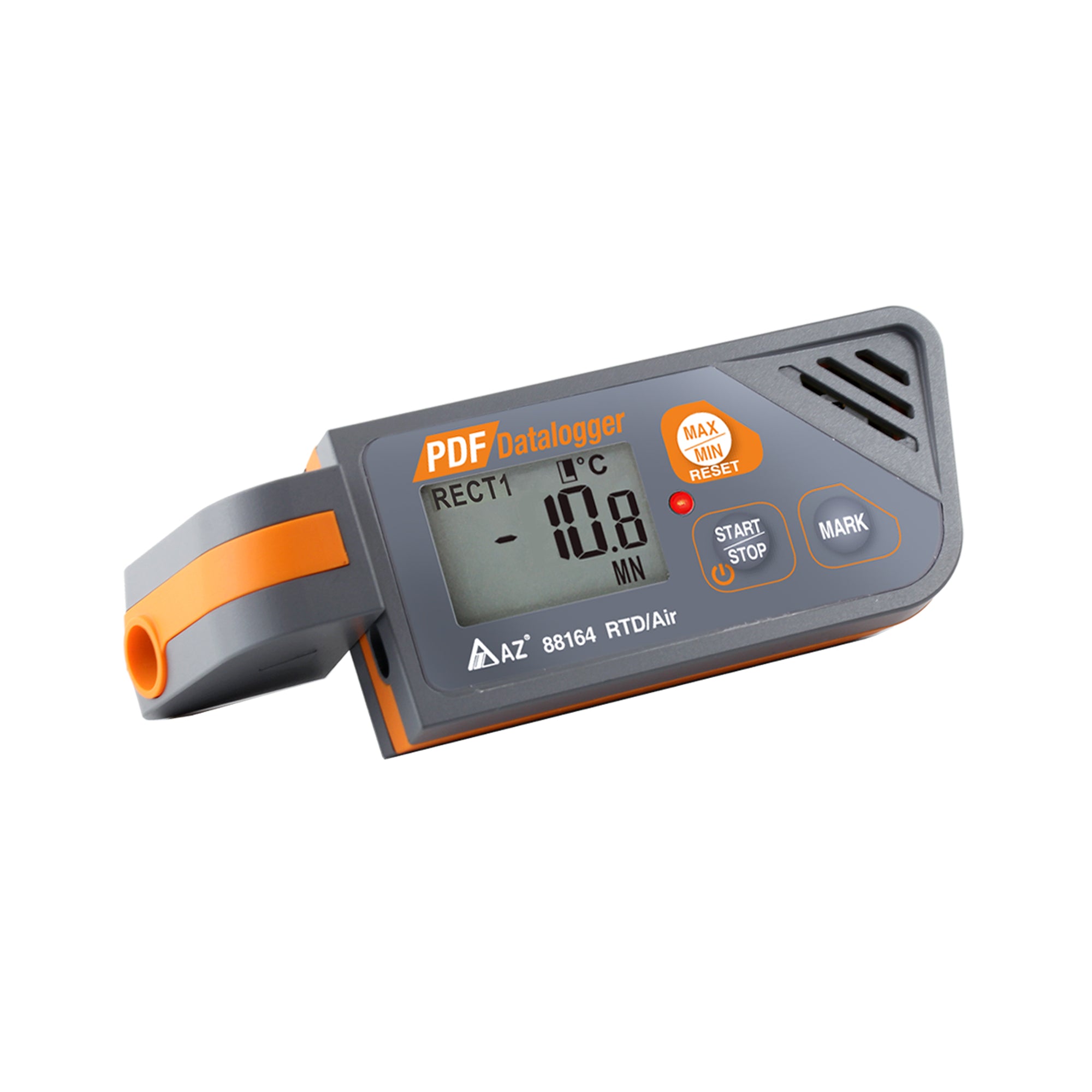

AZ 88164 Ultra Low Temp. Data Logger with RTD Pt1000 Probe
Item Code: VZ88164AZ
The 88164 AZ device could attach the external RTD Pt1000 temperature probe, which could be inserted into the container or other measuring object.
Features
AZ 88164 Ultra Low Temp. USB Data logging Device features:
* Plug & Play temperature data logger
* External RTD pt1000 probe for ultra-low temperatures, such as lyophilization
* Software & driver are not required for any operation
* Automatically generate a PDF and Excel report while plugged into a computer
* Report Contains summary, graph, and detailed data
* Completely User re-programmable: 6 languages, sampling interval, start delay, alarm delay, unit, alarm range, alarm type, password and user name
* One Key operation to know leftover battery lifetime
Application
The 88164 AZ USB Ultra Low-Temperature Data Logging Devices can show the dual temperature values, including the air and sensor temperature. The logger can export the report in Excel or PDF format.
The 88164 AZ USB Ultra Low temperature logger can plug into a PC easily, and would not need to install any software in advance.
The 88164 AZ Cold chain temperature Data Logger could be used for the warehouse, workspace, laboratories, basement, wine cellar, aircraft cabins, refrigerate truck (cold chain logistic), storage containers in food transport/ logistic / processing, incubation process, hatcheries, art galleries, museum, HVAC field or other controlled environment.
It can be met with the formal tracking purpose of transportation, especially for the Pharmaceutical industry, hospitals, labs, factories, or other industrial environments. It could be the best tool for quality control requirements.
The 88164 AZ Ultra Low Temp. The recorder with RTD Pt1000 Probe was being designed and manufactured by AZ Instrument, a well-experienced manufacturer of Thermometer Data Logger Company.
TECHNICAL SPECIFICATION
Temperature Range | NTC Thermistor, -30.0~70.0℃, -22~158℉ |
Temperature Resolution | 0.1℃, 0.1℉ |
Temperature Accuracy | ±0.5℃ |
External RTD Pt1000 Sensor Tempe. Range | RTD Pt 1000 sensor,-100~120℃, -148~248℉ |
External temperature Resolution | 0.1℃, 0.1℉ |
External temperature Accuracy | ±0.5℃ |
Sampling Points | 24000 Int. and 24000 Ext. readings |
Operating Temperature | -30℃~70℃ (Logging Status); Room Temp. (PC Mode) |
Storage Temperature | -40~85℃ |
Storage Temperature | -40~85℃ |
