InTemp CX402 VFC Logger, 2M 5ml
Item Code: CX402-VFC205
Overview

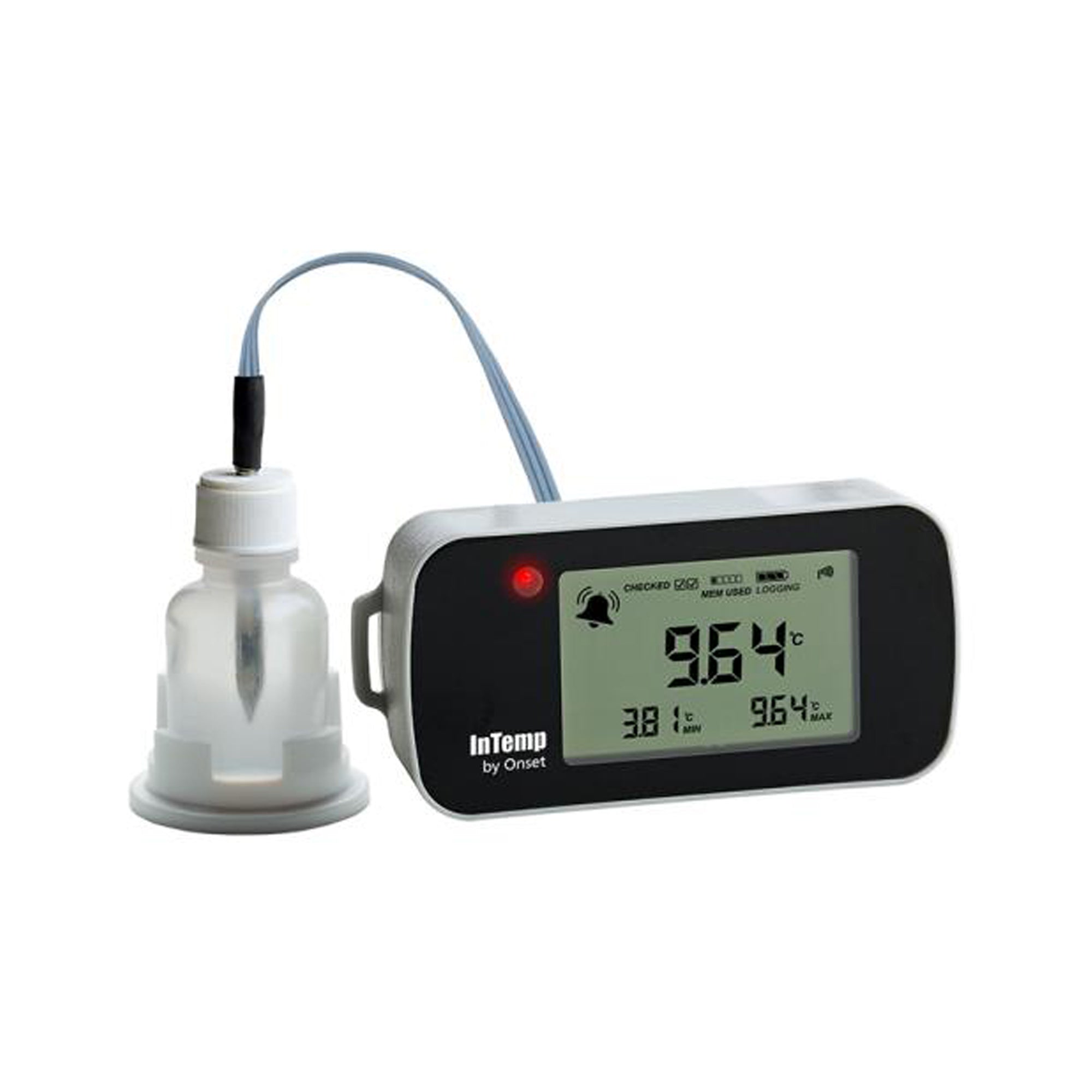

InTemp CX402-VFCxxx (with glycol bottle) data loggers monitor temperatures in refrigerators and freezers for clinics participating in the CDC Vaccines for Children program as well as hospitals, clinics, and WHO sites. The loggers communicate wirelessly via Bluetooth to mobile devices. Using the InTemp app, you can easily view data, check logger status, set alarms, and create and share secure PDF reports for streamlined reporting and regulatory compliance. All loggers feature a built-in LCD display to view current and daily min and max temperatures, advanced audible and visual alarm capabilities for notification of temperature excursions, an internal sensor for ambient temperature monitoring, and a 3-year NIST Certification of Calibration (probe only).
With the optional CX Gateway, you can get remote notifications of temperature excursions and automatically download data from loggers within range of the device. Learn more about the CX Gateway here.
Models are available with a 2- or 4-meter external temperature probe attached to a glycol bottle used to insulate the probe and delay thermal response times.
Learn more about our compatible mobile and cloud solutions:
InTempConnect A cloud-based data command-center control for monitoring all loggers throughout your global supply chain
InTemp App A free mobile app that streamlines logger configuration and readout, and automatically uploads reports to InTempConnect
InTempVerify A free mobile app that manages user permissions and the activation of data downloads by anyone—anywhere, anytime
Features
- Complies with all CDC and Vaccine for Children (VFC) program requirements
- Integrates with mobile and cloud platforms for a 21 CFR Part 11 compliant solution
- Easy-to-read display with current and daily min/max temperatures
- Bluetooth transmission of data and alarm states
- Real-time alerts and automatic data downloads with optional CX Gateway device
- Logger setup and download of data in seconds – without a PC or cable
- +/- 0.5° C accuracy for reliable temperature readings
- Battery-powered to guard against local power loss
- Several glycol bottle sizes with probe and cable-length options
- Includes 3-year ISO 17025 calibration (probe only, per CDC guidelines)
Who It's For:
Required to follow Vaccines for Children & CDC requirements, specifically:
- Probe in glycol
- CDC/VFC compliant with 3 year NIST certificate (probe only)
- GDP/GMP compliant
- Frozen to refrigerated monitoring
- For monitoring COVID vaccines
TECHNICAL SPECIFICATION
| Range | -40° to 100°C (-40° to 212°F) |
| Accuracy | ±1.0°C from -40° to -25°C ±0.5°C from -25° to 80°C ±1.0°C from 80° to 100°C |
| Resolution | 0.024°C at 25°C |
| NIST Calibration | Single point NIST calibration, probe only |
| Cable Length | 2 or 4 meter (6.56 or 13.12 feet) flat ribbon cable |
| Probe Dimensions | Food-grade stainless steel probe with pointed tip, 53.34 mm (2.1 inches) long, 3.18 mm (0.125 inches) diameter |
| Range | -30° to 70°C |
| Accuracy | ±1.0°C from -30° to -22°C ±0.5°C from -22° to 50°C ±1.0°C from 50° to 70°C |
| Radio Power | 1 mW |
| Radio Power | 1 mW |
| Transmission Range | Approximately 30.5 m (100 ft) line-of-sight |
| Wireless Data Standard | Bluetooth Low Energy (Bluetooth Smart) |
| Logger Operating Range | -30° to 70°C, 0 to 95% RH (non-condensing) |
| Battery Type | Two AAA batteries, user replaceable |
| Battery Life | 1 year, typical with logging interval of 1 minute. Faster logging intervals, remaining connected with the InTemp app, excessive report generation, numerous audible alarms, and paging all impact battery life. |
