86501 AZ Accurate Digital Benchtop Water Quality pH Meter
Item Code: VZ86501AZ

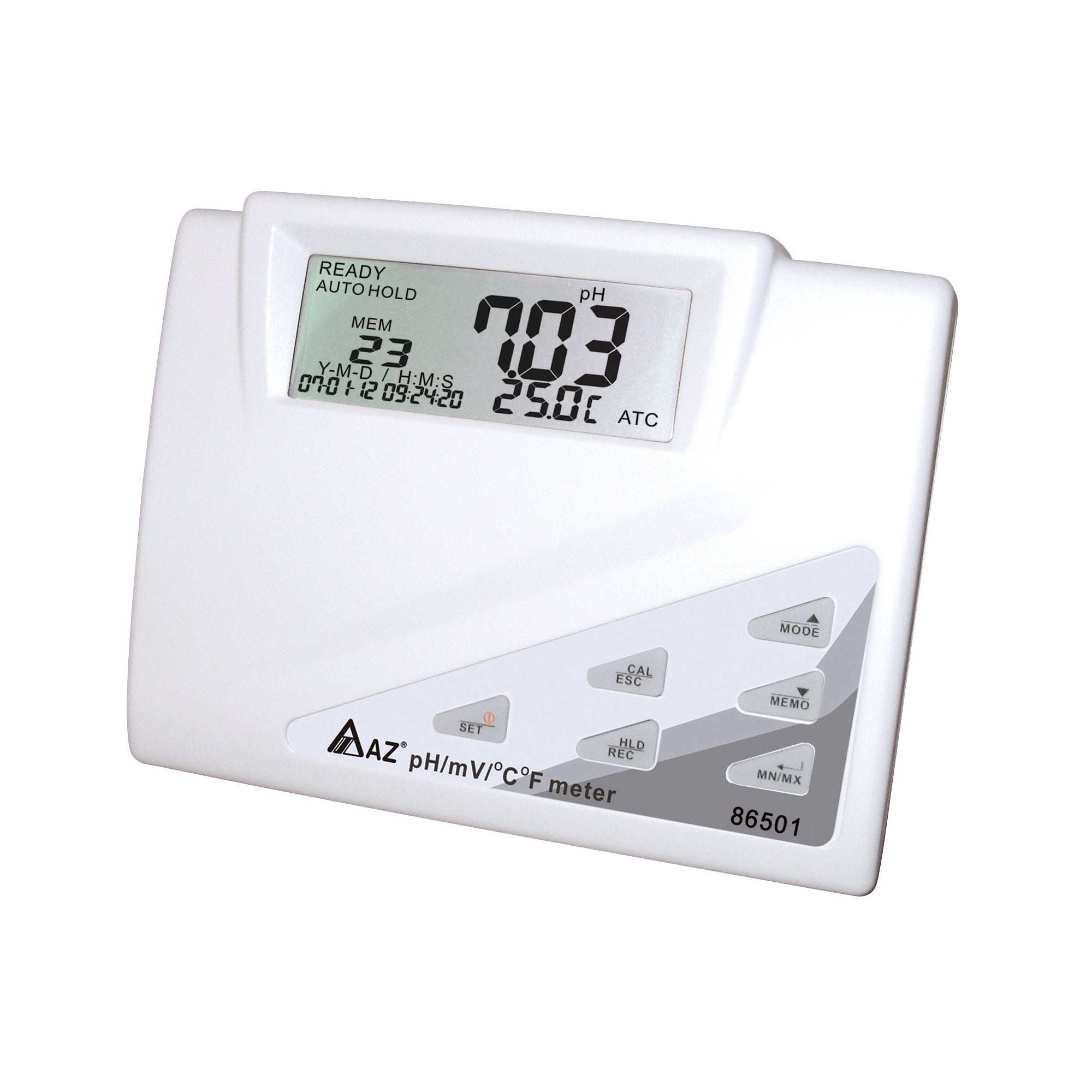

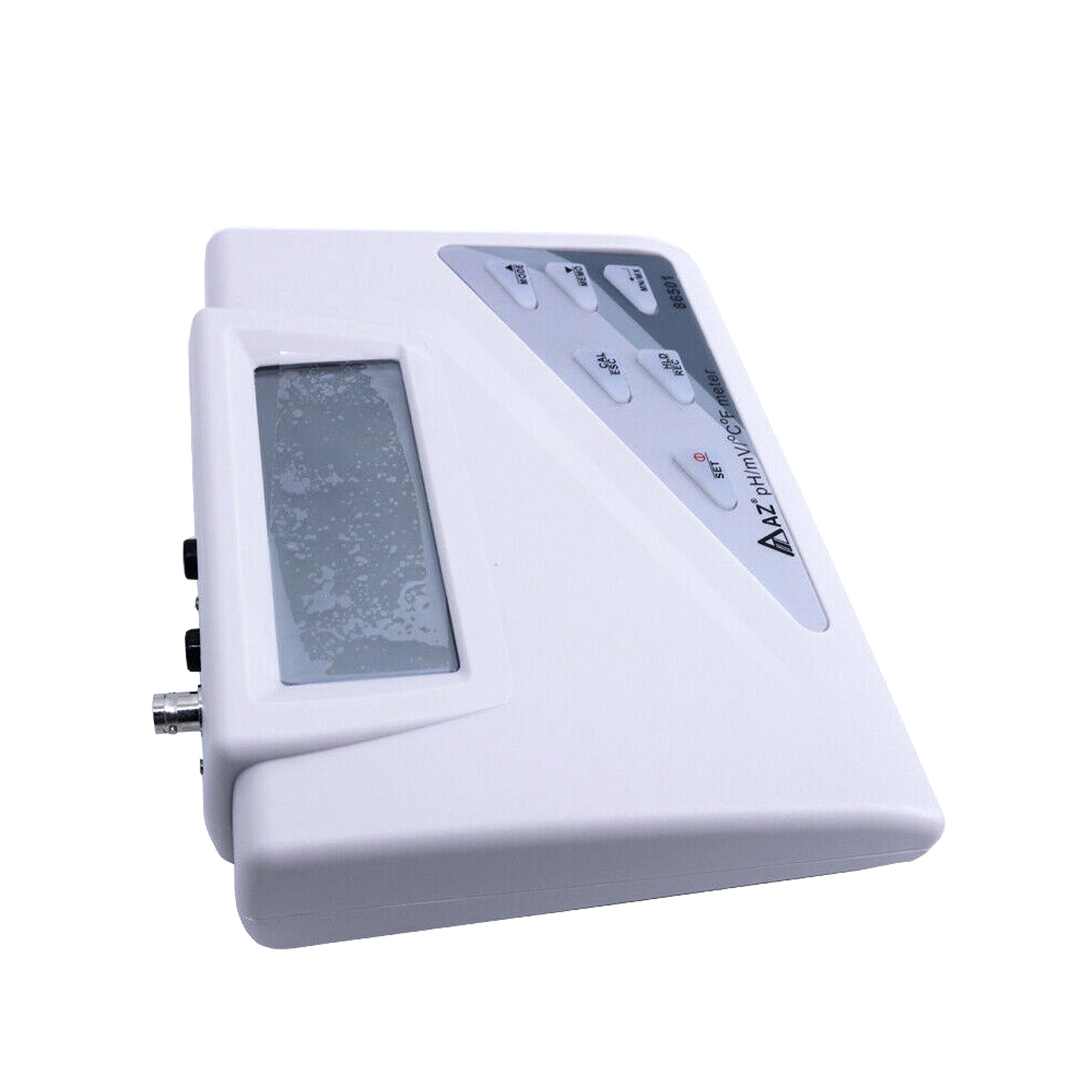

The 86501 AZ Accurate Digital Benchtop pH Meter can measure the pH and mV. The big LCD screen could be multi-display. The pH sensor electrode should be connected to the BNC port.
Features
86501 AZ Accurate Digital Benchtop pH Meter features:
* Multi Display pH, mV & temperature
* Automatic buffer recognition to avoid errors during calibration
* Maximum 5 points calibration points for pH Benchtop meters
* Hold function to freeze the record
* Max./Min. review of memorized data
* Reliable and replaceable probe with temperature compensation
* Auto or manual temperature compensation
* Convenient to view the calibration information of the probe
* The "Ready" icon on the LCD indicates the reading is stable
* 99 memories and could be downloaded to PC for analysis
* Collect data via RS232 interface by linking with PC
* Analog output for chart recorders
* Durable electrode holder for left & right side placement
Application

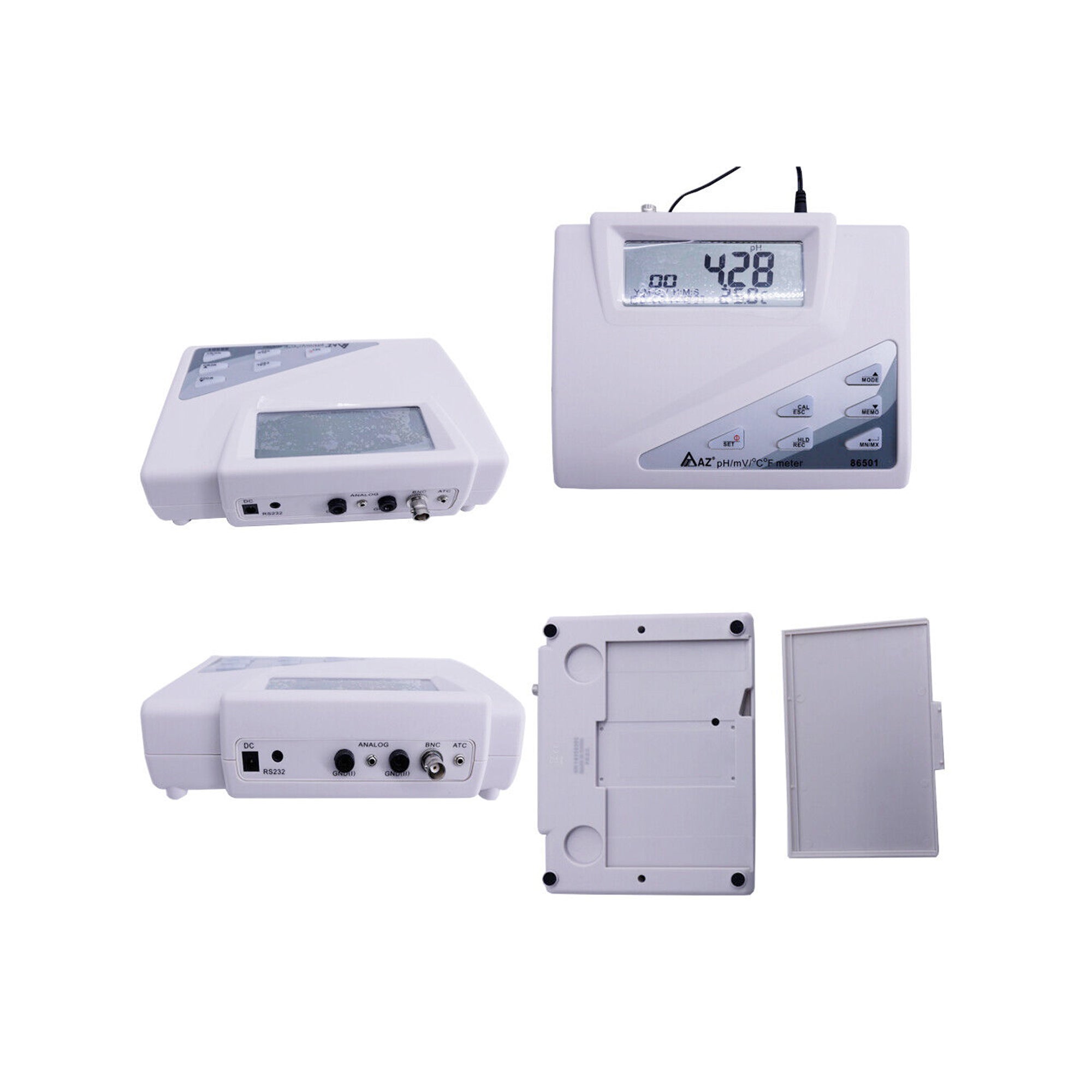

There is a drawer built-in at the bottom of the 86501 AZ Accurate Digital Benchtop pH Meter, which could let users store testing data, exam results, memorandum, or important notes in the drawer. That would be more convenient for any professional study and research in a lab.

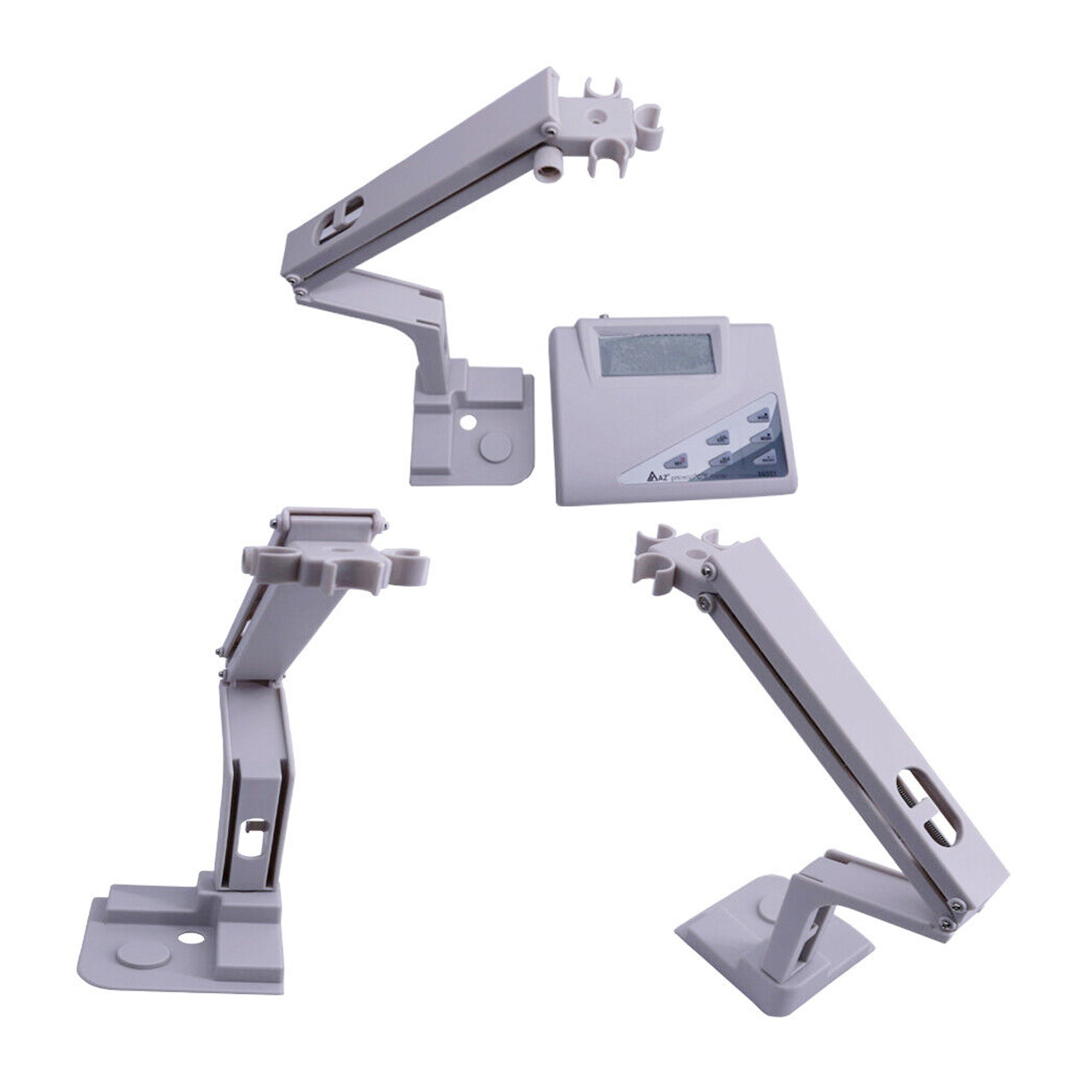

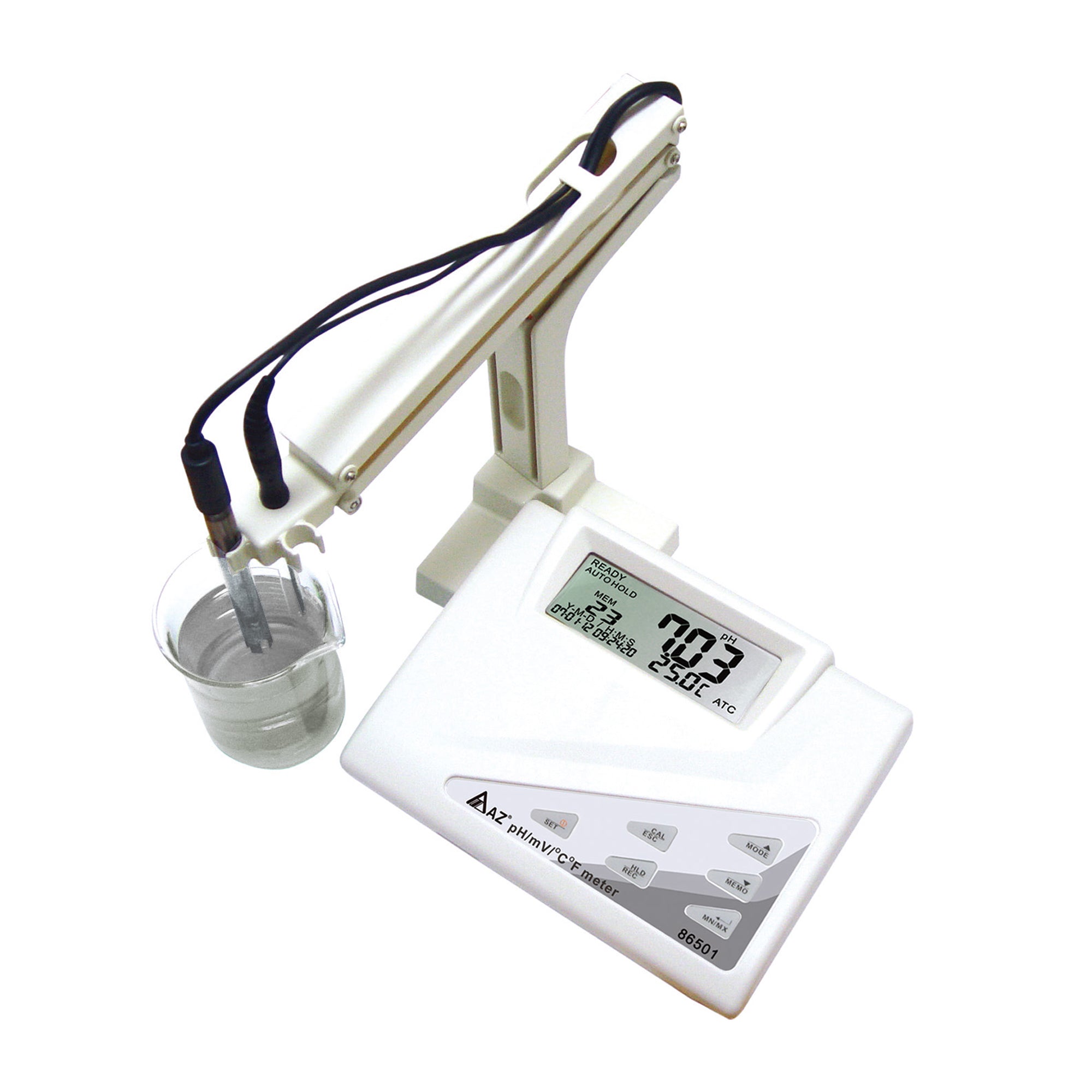

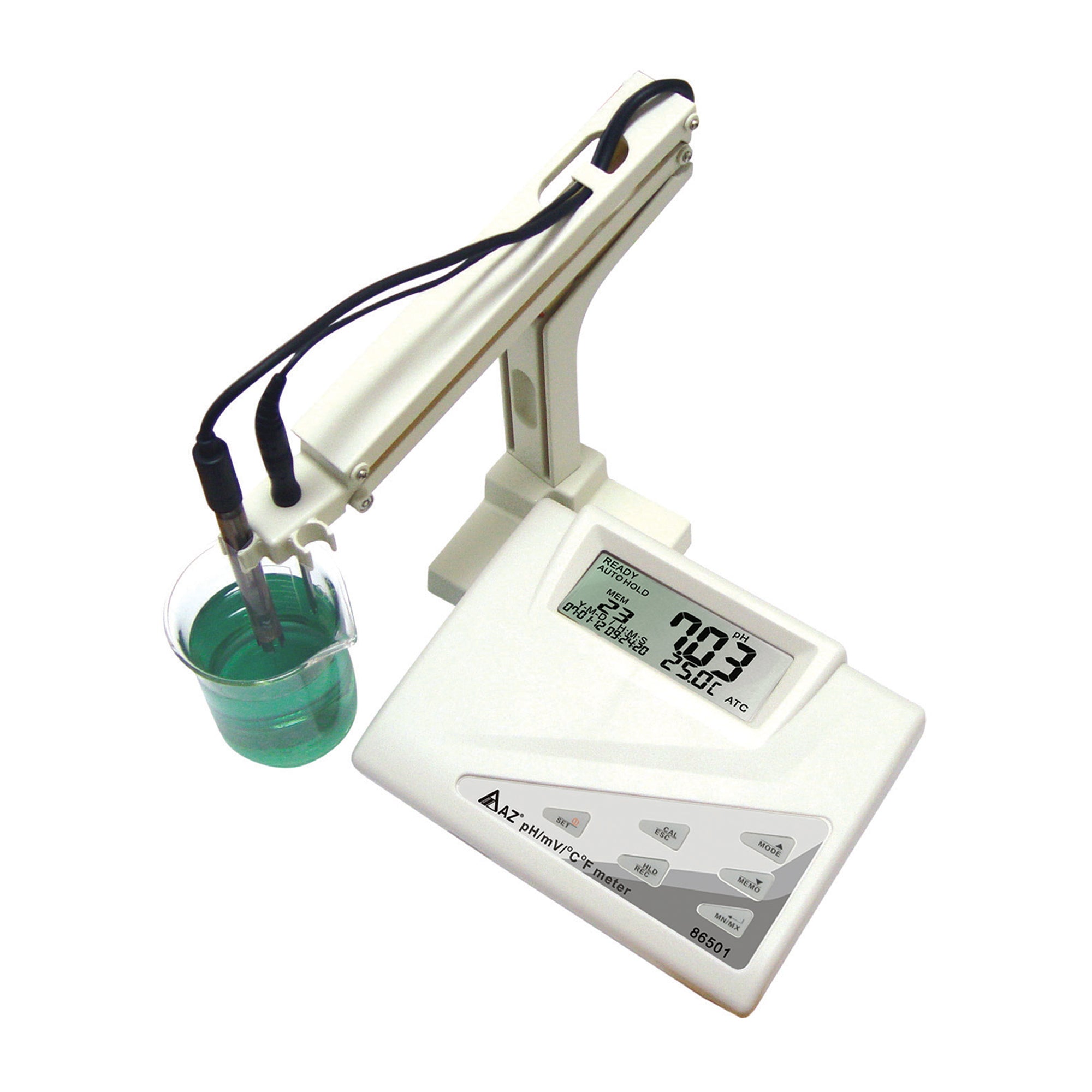

The holder of 86501 AZ Accurate Digital Benchtop pH Meter could be fixed either on the right side or the left side of the meter, that design is friendly for different operations.

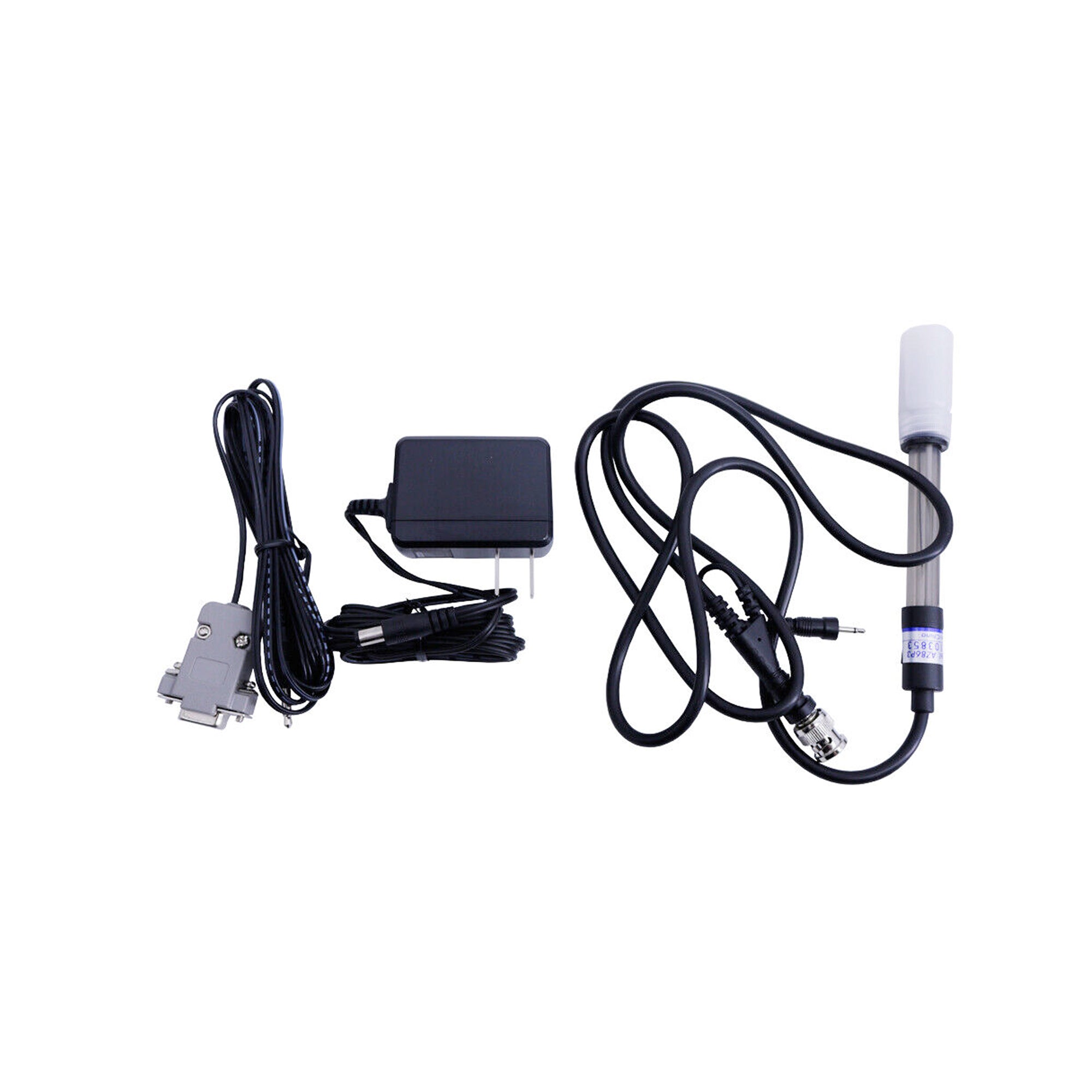

We provide the following different pH probes could be operated with 86501 AZ Accurate Digital Benchtop pH Meter,
| Model No. | Description |
| VZ86P3AZ | ATC pH probe |
| VZ86P2AZ | pH probe without ATC function |
| VZ86P4AZ | pH probe for Low Ion Strength without ATC function |
| VZ86P6AZ | Full glass pH probe without ATC function |
| VZ86P7AZ | Sharp tip pH probe without ATC function |
| VZ86P1AZ | Flat surface pH probe without ATC function |

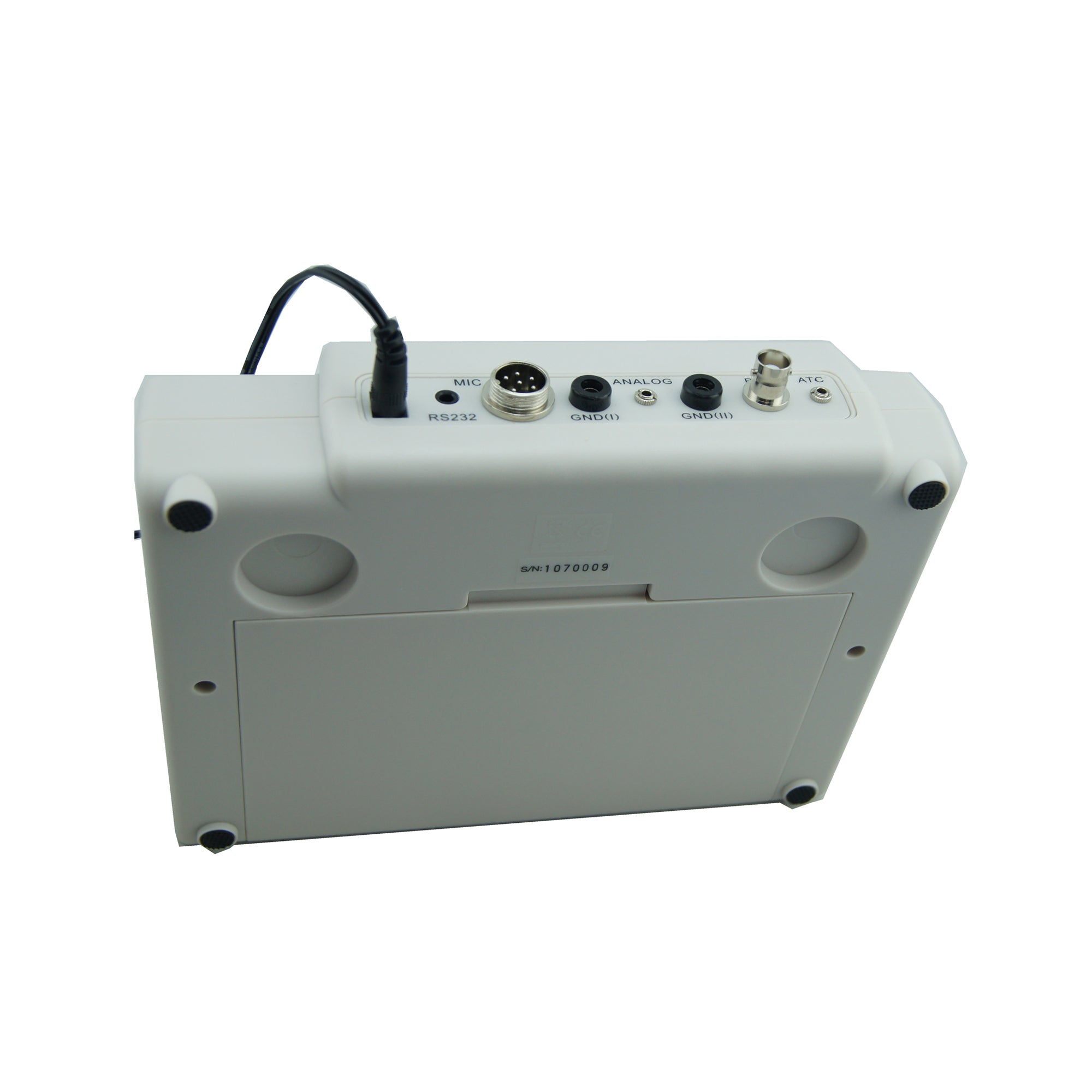

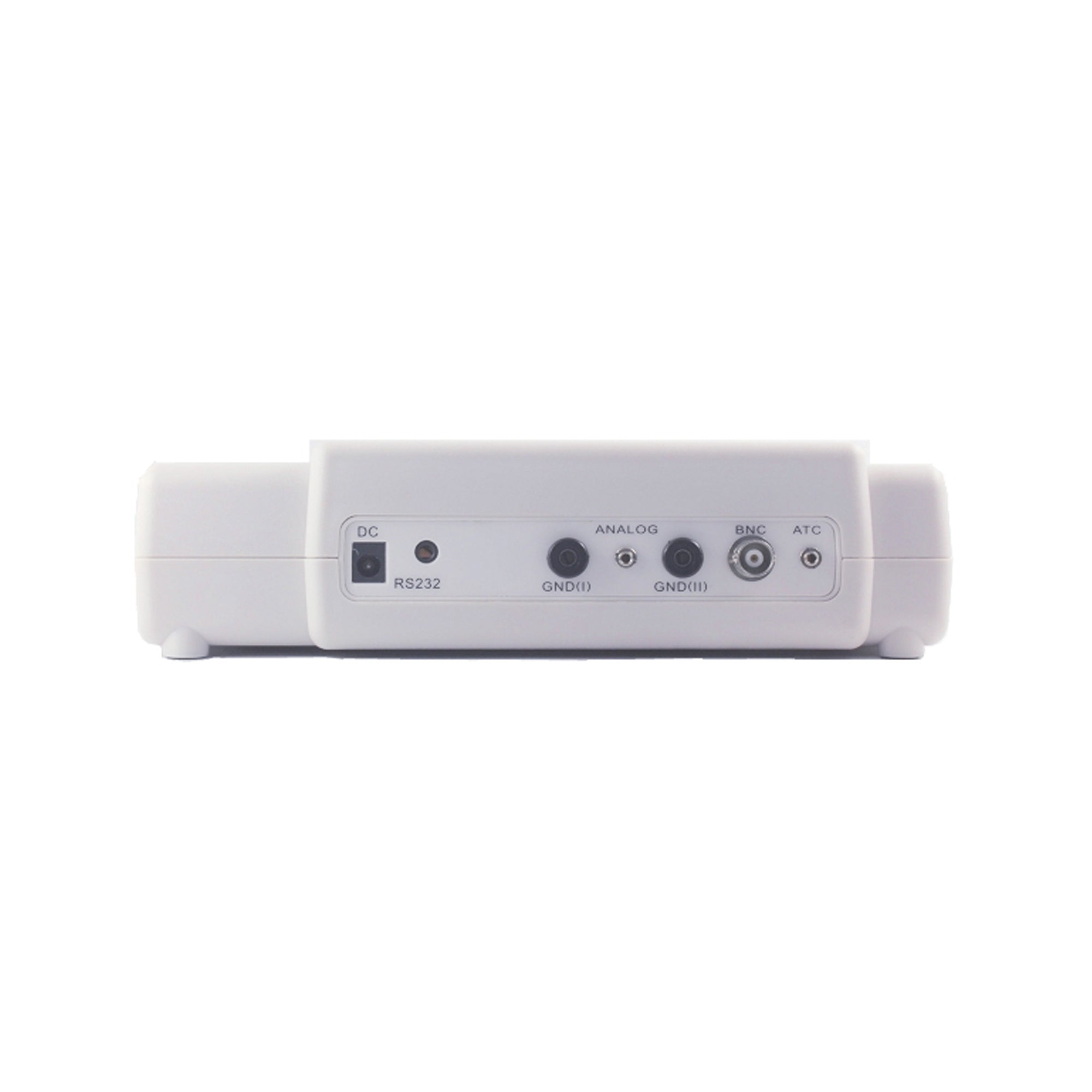

Users could connect the 86501 AZ Accurate Digital Benchtop pH Meter to a PC via RS232 cable to upload the real-time measurement values and memories for further analysis.
If the user needs it, the 86501 AZ Accurate Digital Benchtop pH Meter also could connect to the chart recorder or other data collection devices via its ANALOG port.
The 86501 AZ Accurate Digital Benchtop pH Meter could be the best pH measurement tool for all professional measuring purposes, including the LAB, water treatment business, Aquaculture, Aquafarm, swimming pool, or other related industries.
86501 AZ Accurate Digital Benchtop pH Meter was designed and manufactured by AZ Instrument, a well-experienced manufacturer of Environmental Measuring instruments.
TECHNICAL SPECIFICATION
| pH Measuring Range | 0.00~14.00 |
| pH Resolution | 0.01 |
| pH Accuracy | ±0.02 |
| mV Measuring Range | ±1999 mV |
| mV Resolution | ±0.1 mV (-199.9~199.9 mV) or ±1 mV (others) |
| mV Accuracy | ±0.2 mV (-199.9~199.9 mV) or ±2 mV (others) |
| Temperature Measuring Range | 0~80.0℃ |
| Temperature Resolution | 0.1 |
| LCD Size | 105(L) * 40(W) mm |
| LCD Size | 105(L) * 40(W) mm |
