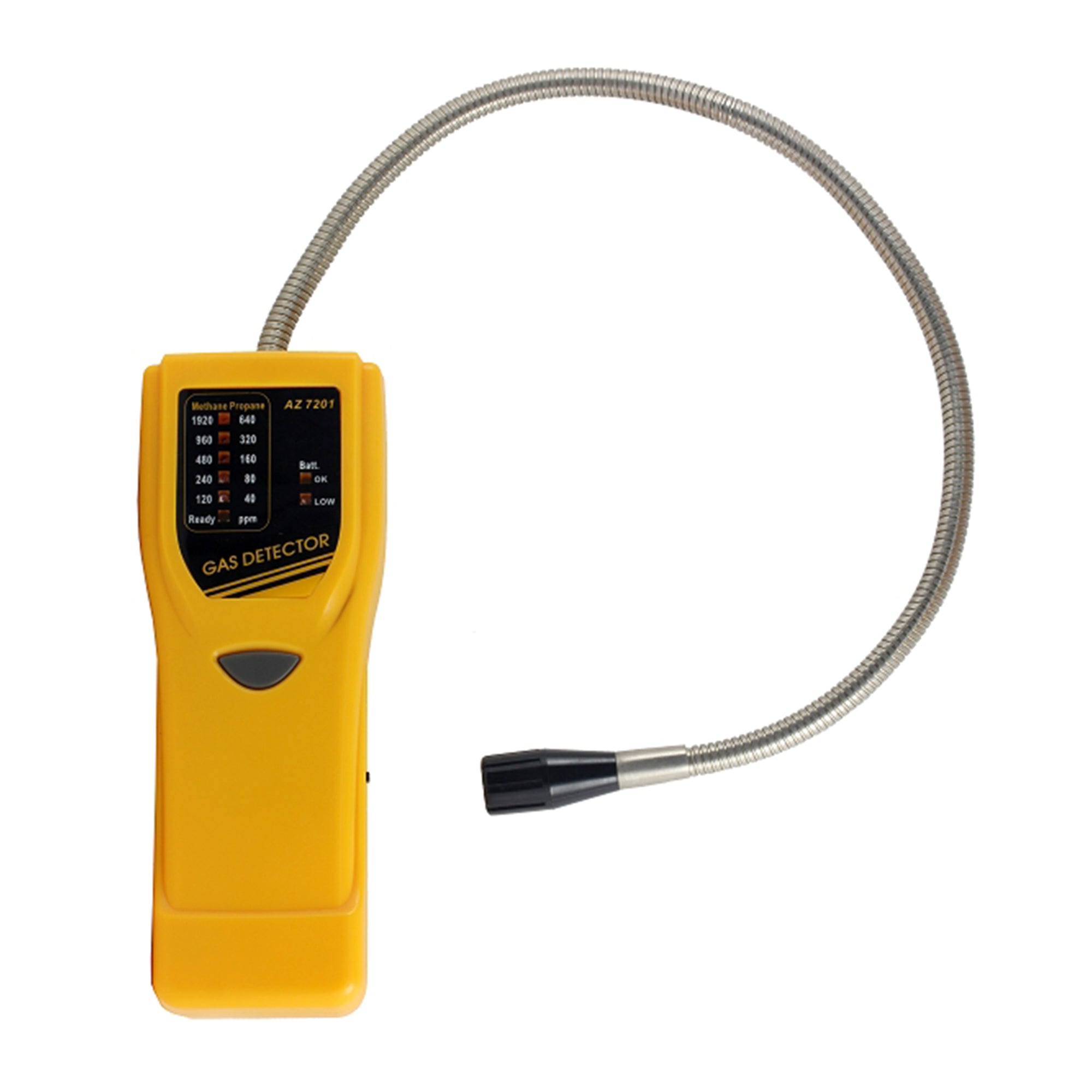

7201 AZ Portable Methane Propane Gas Leak Alarm Detector
Item Code: VZ7201AZ
The portable 7201 AZ CH4 Gas Detector can measure Natural Gas, Methane (CH4), and Propane (C3H8, liquefied petroleum gas, LP-gas, or LPG), which has been widely used as part of a safety system.
Features
AZ 7201 CH4 Gas Leak Detector features:
* Low-cost handheld-type detector checking gas leakage
* High measuring range of Methane to 120 ppm
* Filter included for high discrimination
* Bright 5-level leakage LED indicator
* Status ready and battery low LED indicator
* Quality and reliable Semi-Conductor sensor
* Built-in auto-calibration function while metering powers on
* Long and flexible stainless gooseneck detect probe
* Built in earphone jack for mute mode use
* 60 seconds warm-up time
* Response time less than 10 seconds
* Auto power off to save battery life
Application
The 7201 AZ Portable Methane Detector can be used in the gas extraction environment (waste disposal livestock farming and coal mining), kitchen, or home living room. It also can measure the gas from the car exhaust pipe.
The 7201 AZ Gas Leak Alarm Detector was being designed and manufactured by AZ Instrument, a well-experienced manufacturer of Environmental Measuring instruments.
TECHNICAL SPECIFICATION
| Methane Range | 120~1920 ppm |
| Methane Sensitivity | 1200 ppm |
| Propane Range | 40~640 ppm |
| Propane Sensitivity | 40 ppm |
| Gas Discrimination Filter | Built-in |
| Response Time | within 10 seconds |
| Warm Up Time | within 60 seconds |

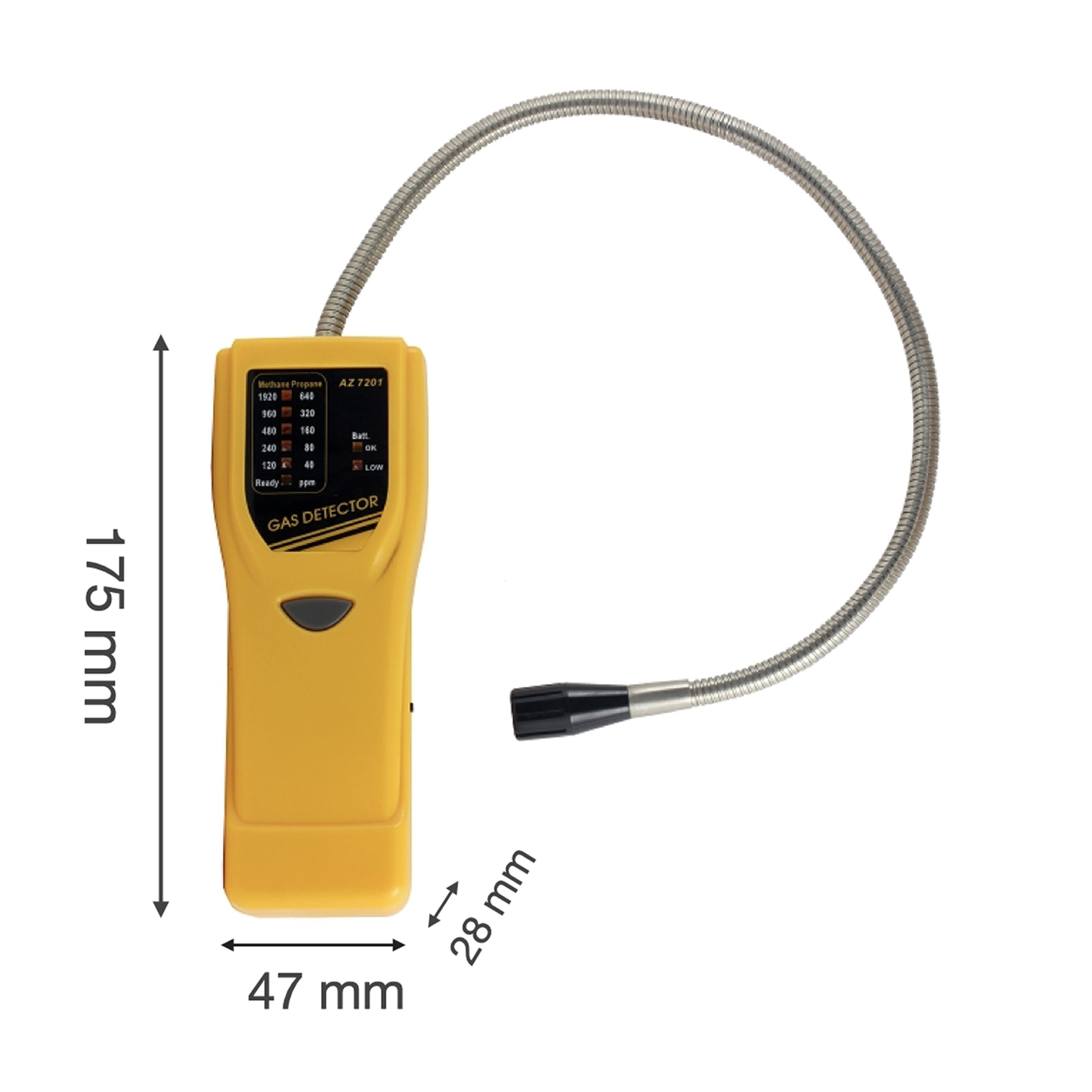

| Meter Size | 175(L) * 47(W) * 28(H )mm |
| Operating RH% | 5~95% RH (avoid condensation) |
| Operating RH% | 5~95% RH (avoid condensation) |
