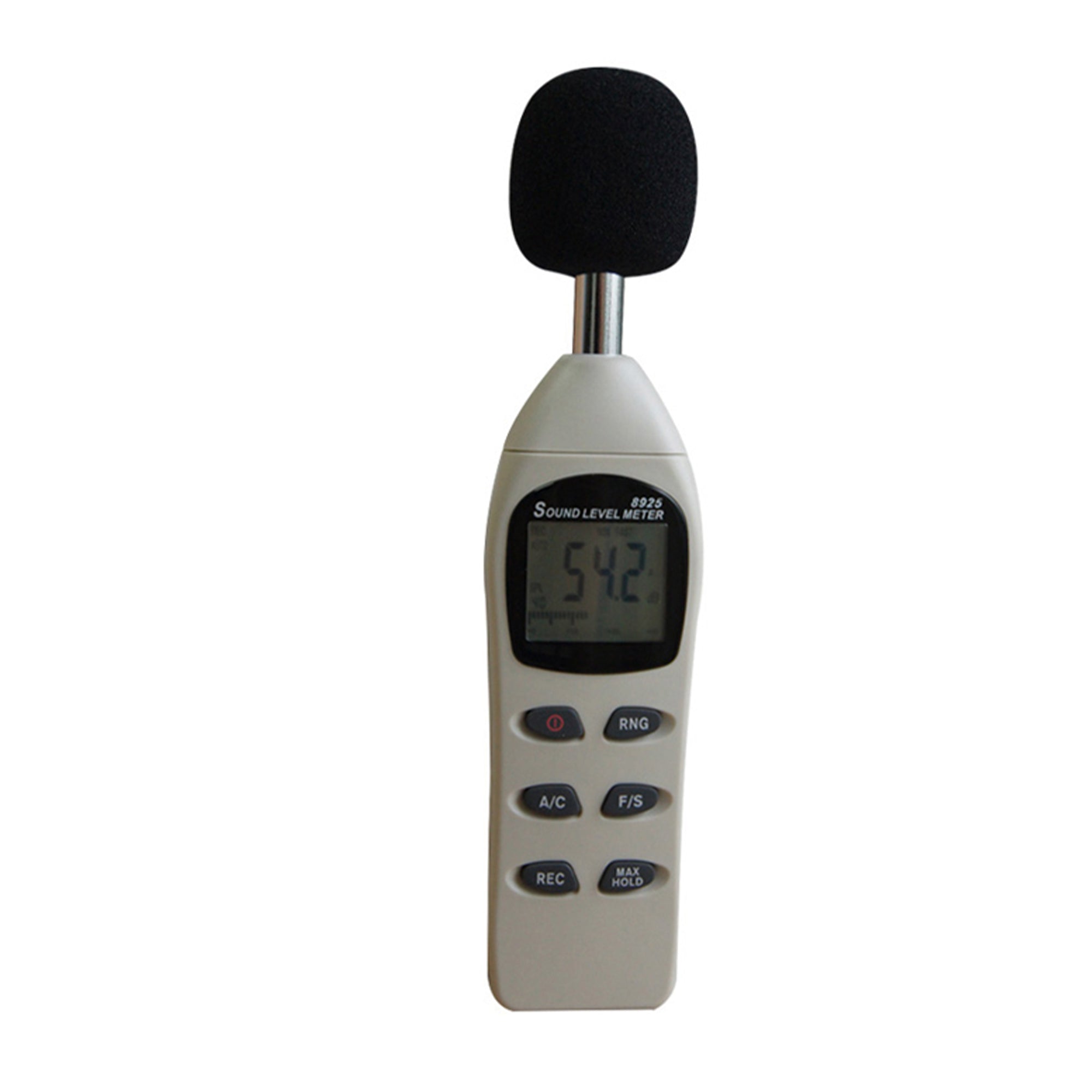

AZ Portable Digital Sound Level dB Meter Detector — main product view

AZ Instruments

8925 AZ Portable Digital Sound Level dB Meter Detector

Item code: VZ8925AZIn stock

Dhs. 230.00

VAT included

The 8925 AZ Sound Level Meter provides automatic or manual range in 4 measurement ranges from 40 to 130 dB, and features 0.1 dB resolution. Features 8925 AZ Sound Level Meter features:* The most cost-effective best-selling meter* Features with digital display and analog bar graph* Auto/manual range, 4 measurement range...
Measure RangeA weight: 40~130 dB C weight:...
Digital Display (4 ranges)40~70, 60~90, 80~110, 100~130 dB
Digital Display Resolution0.1 dB
Request a quote Ask an expert on WhatsApp

UAE stock · Ships in 1–2 business days

Calibration certificate available where supplied

Secure payment

American Express Apple Pay Diners ClubDiscoverGoogle Pay
Clear product informationSpecifications organised for easy review
Technical supportHelp choosing the right instrument
Genuine instrumentsProducts sourced from established brands
Product documentationAvailable documents shown below

Product overview

Built for reliable measurement

The 8925 AZ Sound Level Meter provides automatic or manual range in 4 measurement ranges from 40 to 130 dB, and features 0.1 dB resolution.

Features

8925 AZ Sound Level Meter features:
* The most cost-effective best-selling meter
* Features with digital display and analog bar graph
* Auto/manual range, 4 measurement range in 10 steps
* Max Hold and Fast/Slow response is selectable
* Easy to calibrate by standard calibrator
* A/C weighting is switchable
* Analog output

Application

The 8925 AZ Noise dB Meter allows users to select between fast and slow response times as well as A&C weighting. A maximum hold function is provided. Jacks on the meter provide AC analog output.

The portable 8925 AZ Noise Level Meter can be used for acoustic (sound that travels through air) measurements, which has been widely used in HVAC (Heating, Ventilation, and Air Conditioning) and industrial-related applications.

The Digital 8925 AZ Decibel Sound Test Meter was designed and manufactured by AZ Instrument, a well-experienced manufacturer of Environmental Measuring instruments.

  • Measure Range: A weight: 40~130 dB C weight: 45~130 dB
  • Digital Display (4 ranges): 40~70, 60~90, 80~110, 100~130 dB
  • Digital Display Resolution: 0.1 dB
  • Digital Updating Time: 160 ms
  • Quasi-analog Bar (6 ranges): 40~70, 60~90, 80~110, 100~130 dB
  • Quasi-analog Resolution: 1 dB
AZ Portable Digital Sound Level dB Meter Detector — display close-up

Technical specifications

Measure RangeA weight: 40~130 dB C weight: 45~130 dB
Digital Display (4 ranges)40~70, 60~90, 80~110, 100~130 dB
Digital Display Resolution0.1 dB
Digital Updating Time160 ms
Quasi-analog Bar (6 ranges)40~70, 60~90, 80~110, 100~130 dB
Quasi-analog Resolution1 dB
Bar Updating Time40 ms
Accuracy at 94 dB, 1KHz±2 dB
Analog OutputAC 0.707 Vrms (at full scale): DC 10 mV/dB
MicrophoneDia 6mm electric condenser microphone

Downloads & certificates

Need product documentation?Ask our team for the latest available datasheet or certificate.

Request documents
